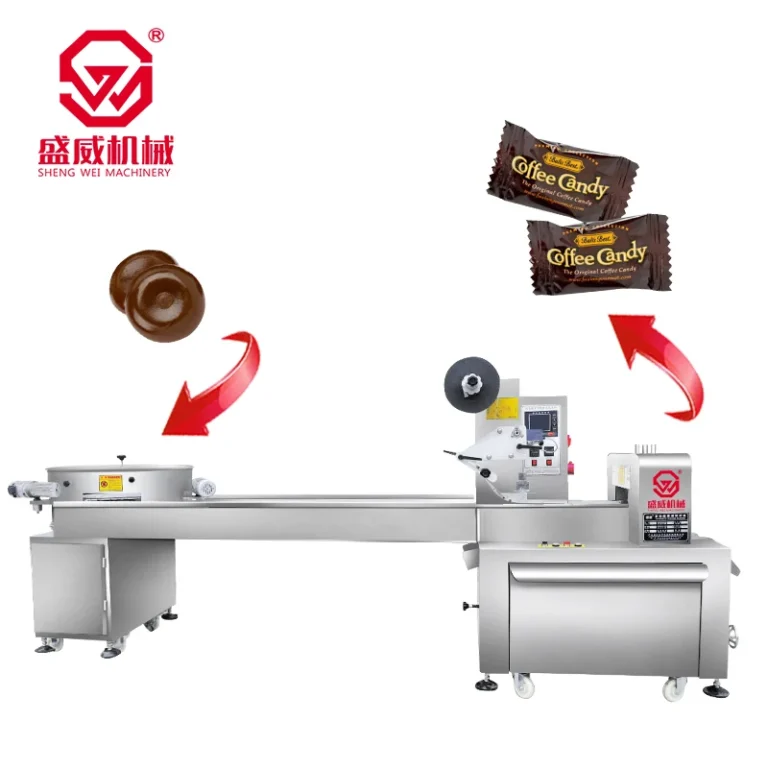

Candy Full Automatic Pillow Packing Machine
Model No. : SW-1000A
Packing Speed: 50 to 500 bags / min
(Depends on products' type and filling volume)
It is suitable for square shape, spherical shape, wafer shape, eylindrical shape, button shape, oval shape candy and some other special shape candy.
suitable for Sachet
Machine Parameters & Specification
| Specification | Details |
|---|---|
| Packing Product Size (L×W×H) | 10-50mm (L) × 10-30mm (W) × 4-25mm (H) |
| Packing Speed | 50-500 bags/min |
| Roll Film Width | 50-160mm |
| Gross Weight | Approx. 720kg |
| Machine Dimensions (L×W×H) | 3850mm (L) × 1300mm (W) × 1600mm (H) |
| Voltage | 220V 50/60Hz |
| Gross Power | 3.7KW |
Features
- Filling stations that handle pre-made bags in one automatic packaging system.
- Automatic placement and transfer of bags into the proper position for packaging.

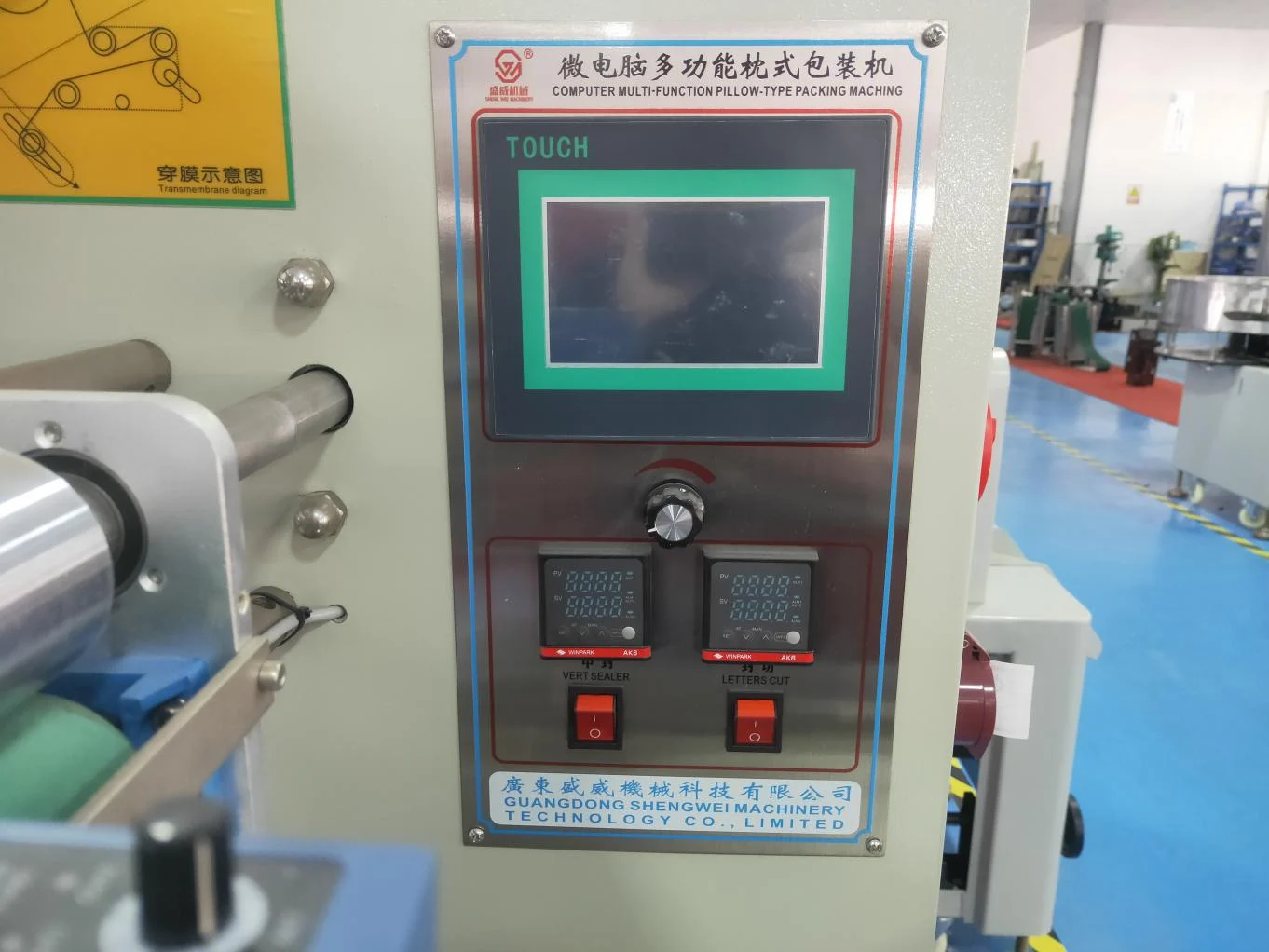

- Siemens PLC control supports touch-screen operation.
- Extensive choice of languages for use.
- Automated machine can print date codes.
- 304 stainless steel.
- A secure environment is provided in memory for 100 product recipes.
- Gripper size, machine speed, sealing temperature, and filling volume are all stored in production parameter memory.
- Bag deflation is controlled by either wire guide or push bars.
- The two-stage sealing system ensures no product remains.
- Cooling station designed for liquid.
Machine Detail
