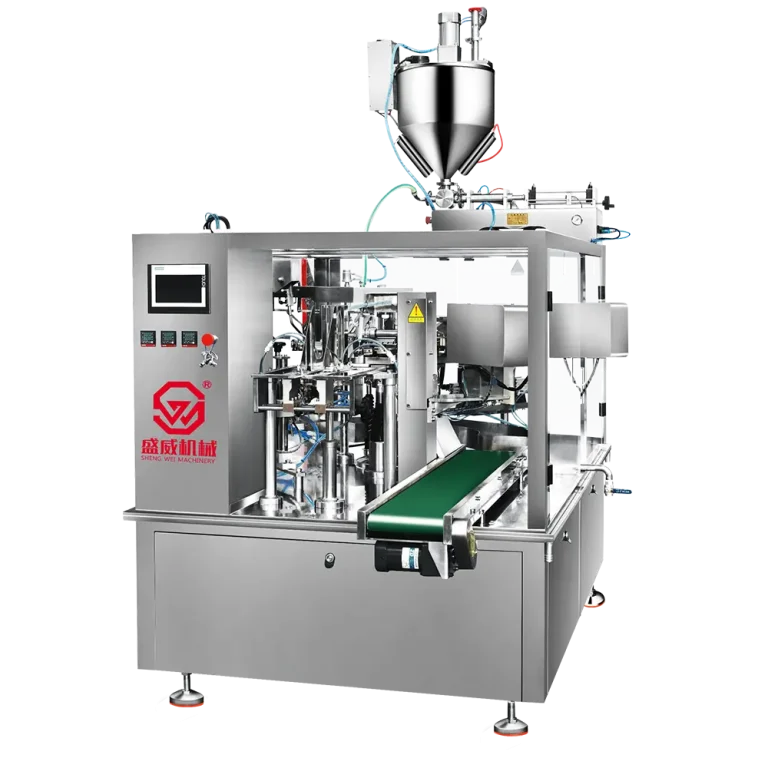

Premade Bag Liquid Packing Machine
SW-Y200 · SW-Y250 · SW-Y320
Automated rotary filling for liquid and paste products in premade pouches — sauces, juice, detergent, cooking oil, and more. Three models share the same platform; pick by bag width only.
Quality
CE Certified
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · Lifetime Remote Support
SW-Y Series: 8-Station Rotary Liquid Filler
The SW-Y series fills pre-formed pouches with liquid and paste products on an 8-station rotary carousel. Each station performs one step — bag loading, opening, filling, sealing, cooling, coding, detection, and discharge — all running simultaneously so throughput stays high even at large bag sizes.
A stainless steel metering pump (standard for thin liquids) or piston pump (optional for viscous paste) measures each dose with anti-drip nozzles to prevent spillage. All product-contact surfaces are SUS304 stainless steel. The PLC + HMI touch screen stores up to 50 recipes and supports stand-up, flat, zipper, and gusset pouches — switch format via software, no mechanical retooling.
Packing Speed
16–50 bags / min
Fill Weight Range
30–5,000 g
Filling Accuracy
±1% (±1 g below 100 g)
| Parameter | SW-Y200 | SW-Y250 | SW-Y320 |
|---|---|---|---|
| Bag Width | 80–200 mm | 110–250 mm | 180–320 mm |
| Bag Length | 100–350 mm | ||
| Fill Weight Range | 30–5,000 g | ||
| Filling Accuracy | ±1 g (≤100 g) / ±1% (>100 g) | ||
| Packing Speed | 16–50 bags / min | ||
| Stations | 8 (rotary carousel) | ||
| Bag Formats | Stand-Up / Flat / Zipper / 3-Side Seal / 4-Side Seal / Gusset / Flat-Bottom (8-Side Seal) | ||
| Filling System | Metering pump (std) · Piston pump for paste (opt) | ||
| Control | Industrial PLC + HMI Touch Screen · 50 recipes | ||
| Contact Material | SUS304 Stainless Steel | ||
| Power | 2.3–7.5 kW · 380V/220V · 50/60 Hz (customizable) | ||
| Air | 0.6–1.2 m³/min | ||
| Weight | ~1,800 kg | ||
| Dimensions (L×W×H) | 2,300 × 1,560 × 2,430 mm | ||
SW-Y200 · 80–200 mm — small sachets, portion packs
SW-Y250 · 110–250 mm — standard retail pouches
SW-Y320 · 180–320 mm — bulk, family-size
Recommended Configurations by Product
Each scenario below shows a tested configuration with expected output. Actual throughput varies by product viscosity and bag format — contact us for a capacity estimate based on your specific product.
Sauce & Condiments
200 g stand-up pouch for retail
- Model
- SW-Y250
- Pump
- Piston pump (for viscous paste)
- Speed
- ~30 bags/min
- 8 h Output
- ≈ 14,400 bags
- Clients
- Ketchup brands, chili sauce producers, soy sauce exporters
Juice & Beverage
500 ml doypack with spout cap
- Model
- SW-Y320
- Pump
- Metering pump (for thin liquids)
- Speed
- ~25 bags/min
- 8 h Output
- ≈ 12,000 bags
- Add-ons
- Nitrogen flushing for extended shelf life
Detergent & Household Chemicals
1 L stand-up pouch for retail shelf
- Model
- SW-Y320
- Pump
- Metering pump
- Speed
- ~20 bags/min
- 8 h Output
- ≈ 9,600 bags
- Clients
- Cleaning product brands, household chemical co-packers
Cooking Oil & Vinegar
250 ml flat pouch sachet
- Model
- SW-Y200
- Pump
- Metering pump
- Speed
- ~40 bags/min
- 8 h Output
- ≈ 19,200 bags
- Clients
- Edible oil brands, vinegar producers, food service suppliers
The SW-Y series is designed for liquid and paste products only. For free-flowing granules, see the SW-D series. For fine powder, see the SW-L series.
Supported Pouch Types & How to Choose
The SW-Y series handles all common premade pouch formats for liquid products. Switching between bag types is done through the HMI panel — recipe recall typically takes minutes, with no tooling changes. Because these are premade bags, the machine only forms the top seal — any preformed format that fits the grippers can run, including four-side-seal and flat-bottom (8-side-seal) pouches.
Stand-Up Pouch / Doypack — best shelf display, self-standing
3-Side Seal Sachet — simple, lowest material cost
Gusset Pouch — extra volume for viscous products
Resealable Zipper Pouch — popular for household chemicals
Stand-Up Pouch
Gusset Pouch
3-Side Seal
4-Side Seal
Fin Seal
Film material: Laminated rollstock film, laminated paper, aluminum foil composite — send us your bag sample or artwork for compatibility confirmation.
How the 8-Station Rotary Cycle Works
All stations run simultaneously — while one pouch is being filled, others are being loaded, sealed, and discharged in parallel.
01
Load & Open
Suction cups pick premade pouches from the bag magazine onto rotary gripper clamps. A second set of suction cups separates the panels; an air jet inflates the bag fully open. Sensors skip any failed opens automatically.
02
Pump & Fill
The metering pump draws liquid from the stainless steel hopper and dispenses a precise dose through an anti-drip nozzle into the open pouch. Pump speed is controlled by a frequency inverter for accurate volume adjustment. An optional piston pump handles viscous paste products such as thick sauces and creams.
03
Seal & Cool
Heated jaws close the bag mouth under controlled pressure — temperature, dwell time, and pressure are adjustable per film type. A vacuum extraction option removes trapped air above the liquid before sealing to prevent bag expansion and extend shelf life. Cooling plates solidify the seal to prevent deformation before release.
04
Code & Discharge
Optional date coder prints batch info on the finished pouch. Gripper clamps release onto the outfeed conveyor. A reject mechanism removes underweight or failed-seal bags before they reach the packing station.
Gallery & Video
❮
❯
8-station rotary overview — bag loading, filling, sealing, and discharge run simultaneously
Complete Liquid Packaging Line
The SW-Y series operates standalone or as part of a turnkey line. ShengWei supplies every component — from liquid tank to outfeed conveyor — and designs custom layouts to fit your factory floor. Send us your floor dimensions and target output for a line proposal.
Premade Bag Packing Machine
Core of the line — 8-station rotary carousel that loads, opens, fills, seals, and discharges liquid pouches in a continuous cycle.

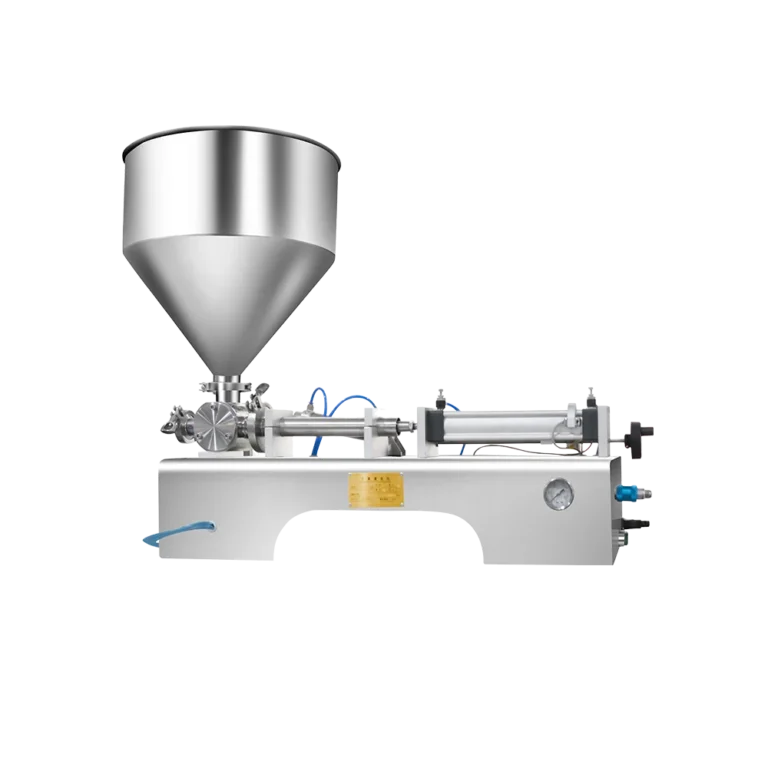

Liquid Metering Pump
Stainless steel pump with conical hopper. Frequency-inverter-controlled for precise volume adjustment. CIP-ready design for easy cleaning.
Bag Magazine
Gravity-fed bag storage system. Stacks premade pouches for automatic pickup by the rotary carousel suction cups.
Outfeed Conveyor
Belt conveyor transports finished pouches to downstream checkweigher, metal detector, or carton packing station.
Optional Add-Ons
All options integrate with the SW-Y control system and can be managed from the main HMI panel. Available factory-installed or as field retrofits.
Branded Components You Can Verify
Every critical component on the SW-Y series is sourced from established industrial brands. Part numbers are listed on the quotation sheet so you can verify pricing and availability independently before you order.
Metering Filling Pump
SUS304 stainless steel pump with conical hopper. Anti-drip nozzle prevents spillage between fill cycles. CIP-compatible for rapid product changeover.
Siemens SMART 700 HMI
7-inch colour touch screen. Up to 50 product recipes. English, Spanish, Arabic, Russian available.
Siemens PLC
Siemens programmable logic controller. Coordinates all 8 stations and pump timing in real time with fault diagnostics on HMI.
AMB Frequency Inverter
Controls metering pump motor speed for precise fill volume adjustment. Enables smooth startup and prevents liquid hammer in the pipeline.
Sealing Temperature Controllers
Independent PID controllers for each sealing jaw. Maintains ±1°C accuracy across the full temperature range for leak-free liquid pouch seals.
SMC Guide Cylinder
Anti-rotation guided cylinder for sealing jaw actuation. Ensures consistent jaw alignment and seal quality across every cycle.
Schneider Easy9 Breaker
CE-compliant thermal-magnetic protection for main electrical cabinet. Overcurrent and short-circuit protection across all motor circuits.
Is a Premade Bag Liquid Machine Right for You?
Premade bag machines and form-fill-seal machines both automate liquid packaging. The right choice depends on your bag format needs, product viscosity, and production volume.
Choose Premade Bag (SW-Y) When:
- You need stand-up, zipper, or gusset pouches with high-quality pre-printed graphics
- You run multiple liquid SKUs (thin liquids + viscous paste) and switch bag formats frequently
- Your retail customers demand premium shelf presentation for sauces, beverages, or detergent
- Your batch sizes are small to medium (under 100,000 bags/day)
Choose Form-Fill-Seal When:
- You only need pillow bags or simple 3-side seal sachets
- You run a single liquid SKU at high volume (100,000+ bags/day)
- Per-bag material cost is the top priority over shelf appearance
- You are willing to invest in forming collars for each bag size change
When This Machine Is Not the Right Fit
The SW-Y series is designed for liquid and paste products only. For free-flowing granules (nuts, seeds, coffee beans), the SW-D series with multi-head weigher filling is the correct choice. For fine powder (flour, spice, milk powder), use the SW-L series with auger filling. For spout pouches requiring a screw cap, consider the SW-CCS6 spout pouch machine.
Why Choose ShengWei Machine
Factory Direct from Guangdong
Designed and manufactured in our own 11,000 m² Shantou factory. No trading companies, no middlemen — you work directly with the engineers who build your machine.
Built-to-Order Configuration
Voltage (380V/220V, 50/60 Hz), HMI language (English, Spanish, Arabic, Russian, Portuguese, and more), pump type, and accessories are all configurable per order. OEM branding available for distributors.
Lifetime Remote Support
Free remote video technical support for the life of the machine — not just the warranty period. Common spare parts typically ship from our factory within 3 working days. On-site installation available on request.
80+ Export Countries
ShengWei machines are deployed in the UAE, Saudi Arabia, Nigeria, Mexico, Colombia, Indonesia, the Philippines, and 70+ additional markets across food, beverage, chemical, and cosmetics industries.
Tested Before Shipment — How We Prove the SW-Y200 Series
72-Hour Run Test on Your Liquid
Every SW-Y200 series machine goes through a structured Factory Acceptance Test before it ships: a 72-hour continuous run with actual packaging film and product material, with speed, seal quality, fill accuracy, and rejection rate all logged. For a rotary premade-bag liquid machine that means verifying pump fill accuracy at your product's viscosity, nozzle behaviour and a clean seal area on your liquid, and gripper transfer across your bag sizes (SW-Y200: 80–200 mm, SW-Y250: 110–250 mm, SW-Y320: 180–320 mm bag widths) — send your liquid and bag samples and the FAT runs on them.
Approve Before We Crate
Before crating, our QC team sends you the FAT report, a test video of your machine running, and photos for approval. If your order requires it, we coordinate SGS, Bureau Veritas, or TÜV pre-shipment inspection and provide full access to the machine and test records. See how the 4-person QC team works at our Factory & Quality Center.
Frequently Asked Questions
What types of liquid products can the SW-Y series handle?
Can the machine fill thick paste and viscous products?
How accurate is the liquid filling, and what prevents dripping?
What is the lead time and payment terms?
Can the voltage and HMI language be customized?
What warranty and after-sales support is included?
How do I choose between the SW-Y200, SW-Y250, and SW-Y320?
Can I send a product sample for a packing test?
How easy is it to clean the machine between products?
What shipping options are available?
Expert Guides
Seal Strength vs Seal Integrity
Liquid splash in the seal zone causes leakers — seal strength vs leak-tightness, and which seal-integrity test finds what.
Read the Sealing Guide →Spout Pouch Filling & Capping Machine
For liquids that need a resealable screw cap and consumer-friendly pour spout — see the SW-CCS6 spout pouch line.
See Spout Pouch Machine →Premade Bags or Form-Fill-Seal?
Bag quality, changeover, film cost, and total cost of ownership — when a rotary premade-bag machine beats VFFS for liquids, and when it doesn't.
Read the Comparison →Other Premade Bag Machines
Same rotary platform, different filling systems — choose by product type.

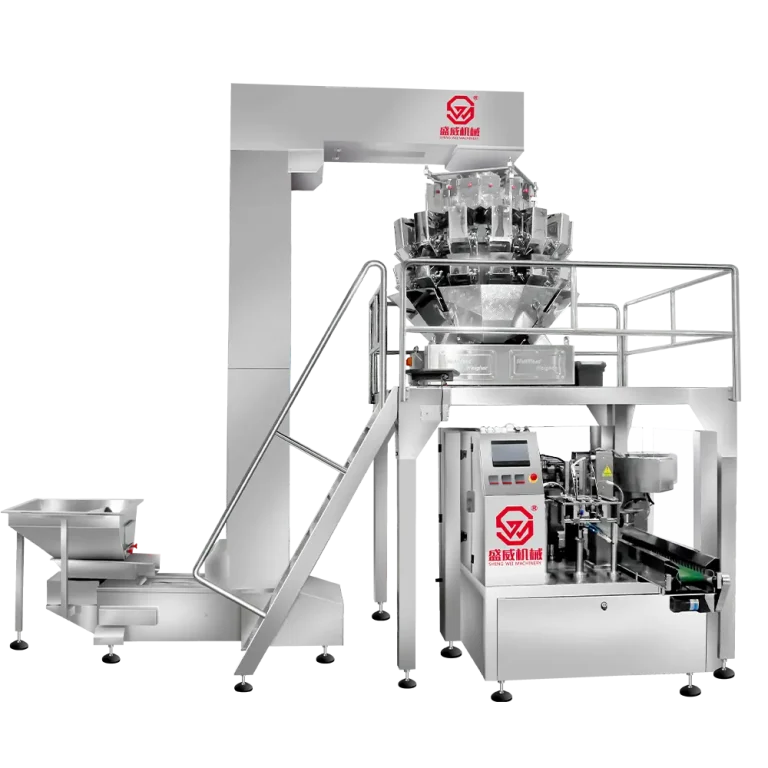

Granule Packing Machine
Multi-head weigher filling for granules: snacks, nuts, seeds. Same rotary platform and premade bag formats.

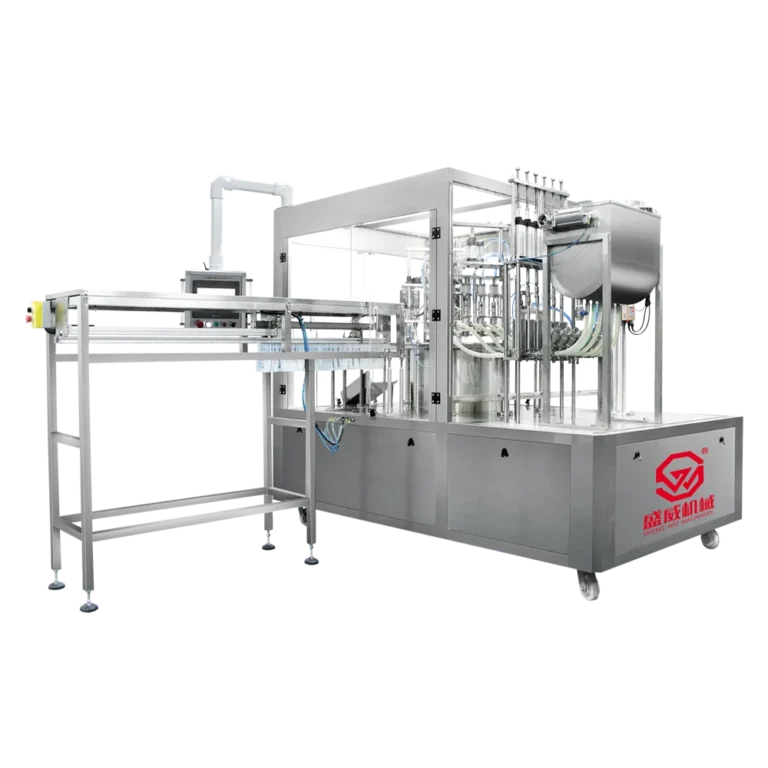

Spout Pouch Filling & Capping Machine
Spout pouch filling and capping for liquid products. Different bag format optimized for resealable liquid packaging.

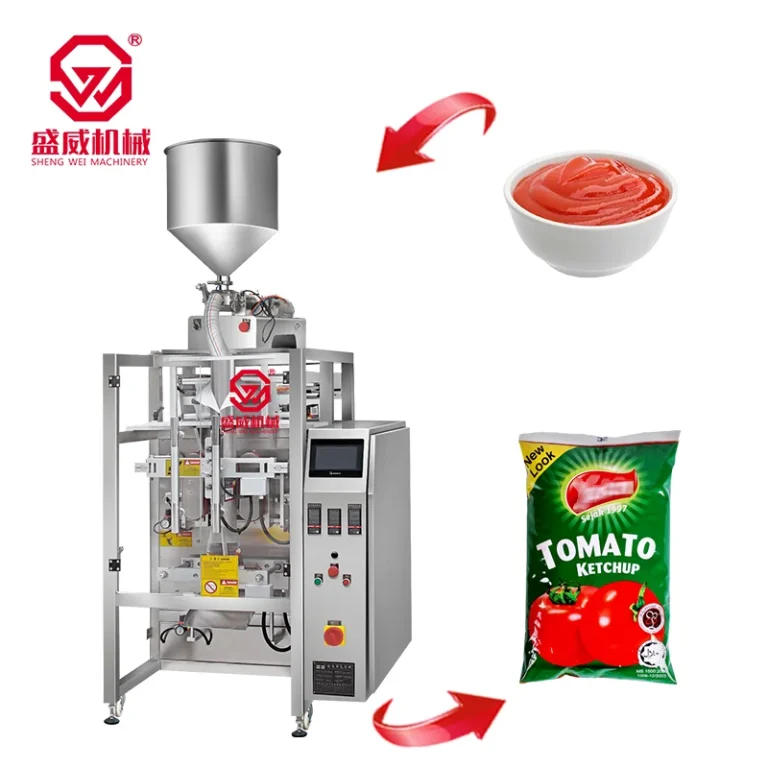

Collar Type Liquid Packing Machine
Form-fill-seal liquid packing machine. Continuous motion with roll stock film for higher speed liquid packaging.
Ready to Discuss the SW-Y Series?
Send us your bag dimensions, product type, and target output. We will confirm the right model and pump configuration and return a quotation within 24 hours.
