Flat Bottom Pouch Packing Machines
Three ShengWei premade-bag rotary fillers producing flat-bottom box pouches (also called block-bottom) — a premium-shelf flexible format with five flat printable panels that read like a rigid paper box. Specialty whole-bean coffee, loose-leaf tea, sport nutrition, and premium retail SKUs from 100 g to 2 kg. Filling speed 16–50 bags/min depending on filler type.
-
16–50Bags / Min
-
±1 g / ±1%Filling Accuracy
-
SUS304Stainless Steel
Quality
CE Certified · SUS304
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · Lifetime Remote Support
Flat-Bottom Box Pouch — Quick Reference
| Definition | Premium block-bottom box pouch (also called flat-bottom) with a flat printable base and five flat printable panels — reads like a rigid paper box but is a flexible film bag. |
|---|---|
| Best for | Specialty whole-bean coffee, loose-leaf tea, sport nutrition, premium retail SKUs in typical retail formats from 100 g to 2 kg; filling speed 16–50 bags/min. |
| Machine match | ShengWei specialty premade-bag rotary fillers with flat-bottom support — SW-D (granules / multi-head weigher) and SW-L (powders / auger) families. |
| Limitations | Higher film cost per bag than an equivalent stand-up pouch; lower maximum speed than pillow or sachet lines — not the right choice for high-volume, low-margin SKUs. |
What product categories use flat-bottom box pouches?
Premium retail SKUs that compete with rigid box and tin packaging on shelf appeal — the flat-bottom format gives five printable panels (front, back, two sides, plus the flat bottom face) for maximum branded surface. Below are three common flat-bottom product categories on ShengWei premade-bag rotary lines. For juice or capped product, see our spout pouch filling and capping machine as an alternative premium format.

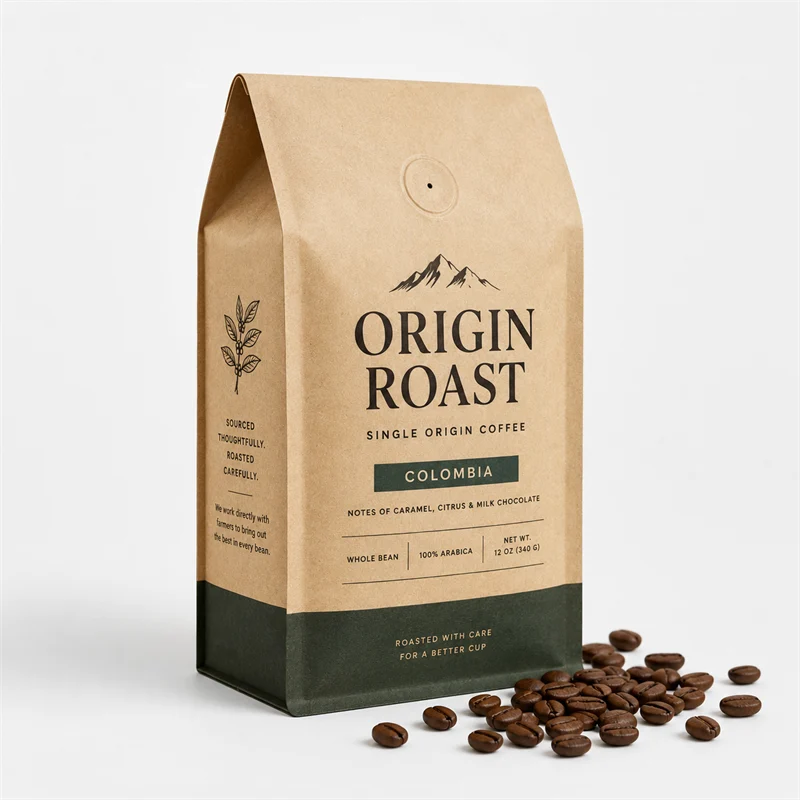

Specialty Coffee
Single-origin whole-bean and ground coffee. Flat-bottom is the premium-tier coffee format above gusset bag — the rectangular shelf face with kraft-laminate print signals "specialty roaster" while a one-way degassing valve releases CO2 from fresh-roasted beans. SW-D series multi-head weigher for whole beans; SW-L series (auger) for ground coffee.

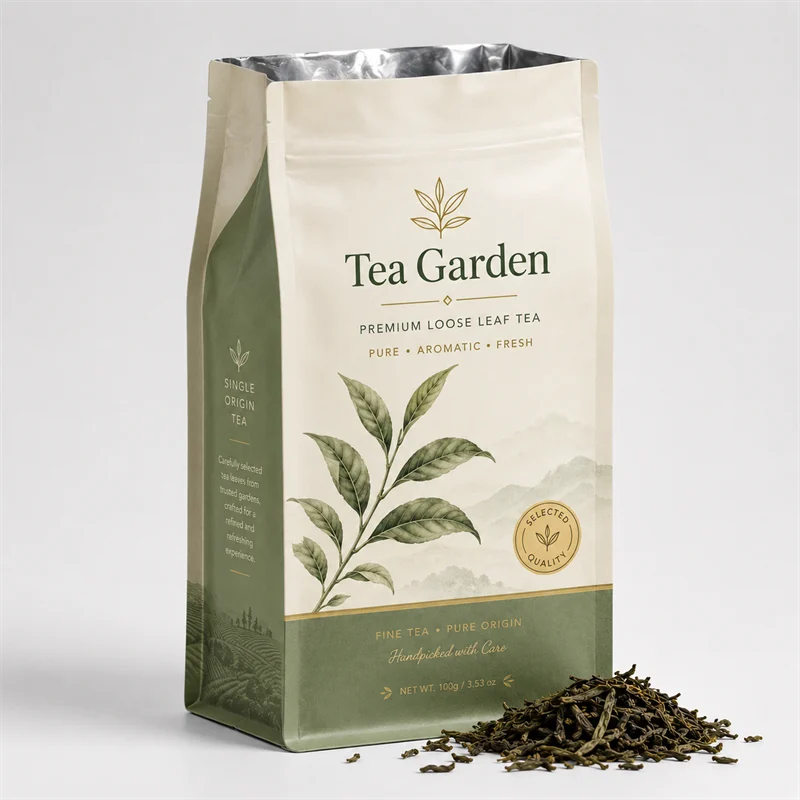

Premium Loose-Leaf Tea
Loose-leaf green tea, oolong, herbal blend, matcha. Flat-bottom box pouch with metallized-foil interior is a common premium tea retail format — protects from light and oxygen while presenting elegantly on specialty grocery shelves. SW-D measure cup or multi-head weigher for loose-leaf teas; SW-L series (auger) for matcha.

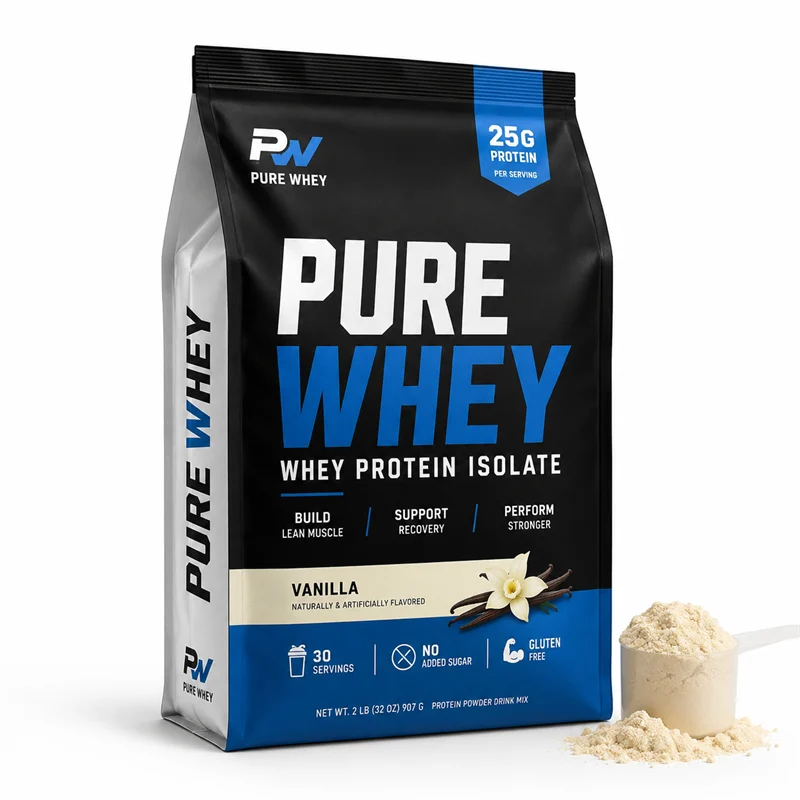

Sport Nutrition Powder
Whey protein isolate, casein, mass gainer, BCAA, pre-workout. Sport nutrition brands use flat-bottom pouches as a lighter, cheaper alternative to plastic tubs at 1–2 kg fill weights — same shelf presence as a rigid container but much lower film cost. SW-L series with auger filler.
Three ShengWei machines fill flat-bottom box pouches.
All three are 8-station rotary premade-bag fillers built on the same SUS304 platform — same machine frame as our stand-up pouch line and gusset bag line, just configured with precise gripper positioning to handle the flat base of flat-bottom pouches. Pick by your fill type.
Granule Filler for Flat-Bottom Pouches
8-station rotary filler for granular product in flat-bottom box pouches — whole-bean coffee, loose-leaf tea, granola, dry roasted nuts, premium pet treats. Multi-head combination weigher (10 or 14-head) delivers ±1 g (≤100 g) / ±1% (>100 g) accuracy on typical retail formats from 100 g to 2 kg. Three model variants 200 / 250 / 320 mm cover boutique to family-pack widths.
View Granule Filler →
Powder Filler for Flat-Bottom Pouches
Servo-driven auger filler for fine powders in flat-bottom box pouches — whey protein, milk powder, instant coffee, supplement mix. An optional dust collector can be added for light, airborne particles.
View Powder Filler →
Liquid Filler for Flat-Bottom Pouches
Piston pump filler for liquid and viscous products in flat-bottom box pouches — less common than granule / powder for this format, but used for premium gourmet liquid (cooking oil, condiment refill, specialty syrup). Anti-drip nozzle prevents spillage.
View Liquid Filler →Specifications: All 3 Premade-Bag Fillers
| Spec | SW-D200 / D250 / D320 | SW-L200 / L250 / L320 | SW-Y200 / Y250 / Y320 |
|---|---|---|---|
| Bag Pattern | Flat-bottom (8-side seal) | Flat-bottom (8-side seal) | Flat-bottom (8-side seal) |
| Bag Width | 80–320 mm | 80–320 mm | 80–320 mm |
| Bag Length | 100–350 mm | 100–350 mm | 100–350 mm |
| Fill Range | 100 g – 2 kg (typical retail formats) | 50 g – 2 kg | SW-Y200: 50–1000 ml; SW-Y250: 500–2000 ml; SW-Y320: 1000–4000 ml (custom, depending on bag size and fill volume) |
| Speed | 16–50 bags/min | 16–50 bags/min | 16–50 bags/min |
| Filler Type | 10 / 14-head weigher | Servo auger | Piston pump |
| Material | SUS304 | SUS304 | SUS304 |
| Dimensions (L×W×H) | SW-D200: 4,500 × 2,820 × 3,700 mm (complete line incl. multi-head weigher + platform); machine only: 2,300 × 1,560 × 1,460 mm | SW-L200: 3,400 × 2,820 × 2,500 mm | SW-Y200: 2,300 × 1,560 × 2,430 mm |
| Power | 2.3–7.5 kW | 2.3–7.5 kW | 2.3–7.5 kW |
When to choose flat-bottom vs alternatives
Flat-bottom box pouch wins on shelf face and premium positioning, but at a higher film cost than a stand-up pouch. For lighter premium SKUs at smaller fills, stand-up pouch is more economical; for heavier fills above 2 kg, side-gusset is structurally stronger. Honest trade-off below.
Flat-Bottom Box Pouch
- Five flat printable panels — closest to rigid box
- Premium specialty coffee & tea format
- Sport nutrition tub replacement
- Best for 100 g – 2 kg premium retail
- Flat sealed base + four side seams
You are reading this page
Stand-Up Pouch (Doypack)
- D-shaped base from bottom gusset
- Lower film cost than flat-bottom
- Resealable zipper for daily-use SKUs
- Best for 30 g – 1 kg retail
- Curved shelf face (vs flat panel)
Side-Gusset Bag
- Rectangular cross-section, heavy-fill capable
- Holds 250 g – 10 kg without deformation
- Common for whole-bean coffee + valve
- Pet food, charcoal, rice, grain default
- Lower film cost than flat-bottom
FAQ
What’s the difference between flat-bottom, K-seal, and block-bottom pouch?
Flat-bottom and block-bottom name the same box-shaped pouch with a rectangular flat base (an 8-side seal bag). K-seal is a different format: a stand-up pouch whose bottom gusset is sealed in a K-shaped pattern at the corners. ShengWei SW-D / L / Y fillers fill premade flat-bottom bags from your converter when the bag width fits the model range.
Can I add a one-way degassing valve for whole-bean coffee?
Yes. Degassing valves are pre-applied to the bag by your bag converter (not by the filling machine) before bags are loaded. SW-D rotary fillers fill premade flat-bottom pouches with or without a converter-applied valve; the bag width must fit the model range (SW-D200 80–200, SW-D250 110–250, SW-D320 180–320 mm). Specify "valve-ready bag" with your converter and ship samples to us for sealing test before commitment.
Why is flat-bottom more expensive than stand-up or gusset?
The flat box base requires more film material and more bag-converter steps than a stand-up pouch’s simple folded gusset or a side-gusset’s side panels. Per-bag film cost runs higher than equivalent stand-up pouch at the same fill weight. For trial sizes and single-serve sachets, 3-side seal is a lower-cost format. The flat-bottom premium is justified for high-shelf-presence SKUs (specialty coffee, premium tea, milk powder) where the rigid-box appearance commands a higher retail price.
Can I add a zipper to a flat-bottom pouch?
Yes — resealable zippers are common on premium loose-leaf tea, sport-nutrition powder, and milk-powder flat-bottom pouches. The zipper is added by your bag converter; SW-D / SW-L machines accept an optional zipper-opening device; with it, the machine opens the zipper, fills below it, and reseals the top. See the zipper pouch packing machine page for module configuration details.
What films and laminates work for flat-bottom pouches?
Kraft / PE laminate for premium specialty coffee & tea (kraft signals natural / specialty positioning), PET/AL/PE foil laminate for high-barrier milk powder and protein powder, metallized PET for lower-cost premium tea, and recyclable mono-PE for sustainable retail SKUs. Sealing parameters adjustable per film type via HMI. Ship sample bags to our Guangdong factory for a sealing test before commitment. For a deeper look at how the flat box base and top seal are formed across different sealing methods — and what seal integrity testing applies to flat-bottom box pouches — see our bag sealing methods guide.

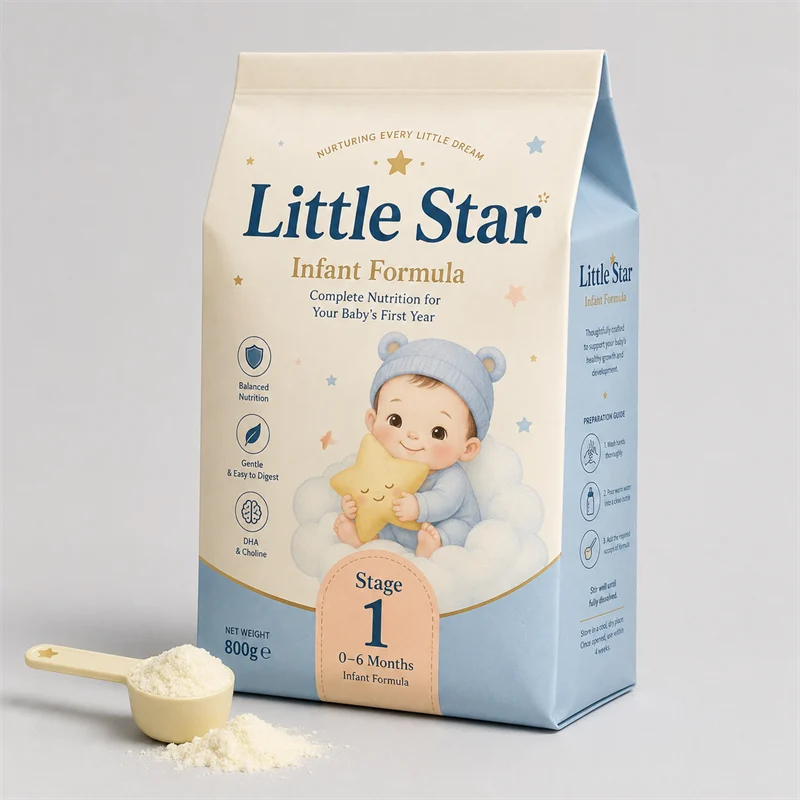

Can flat-bottom pouches replace traditional baby-formula tin cans?
Yes — some newer infant-formula brands use flat-bottom foil-laminate pouches as an alternative to tin cans: the pouch is lighter than a tin can to ship, and film suppliers are developing mono-PE structures (barrier requirements for formula must be validated with your film supplier). Infant formula is a regulated product: whether an SW-L auger line suits it depends on powder characteristics, the auger dosing configuration, contact materials and dust-control requirements — confirm these with us before you choose a machine. For high-volume single-serve sachets, see back-seal pillow pouch or vertical packing machine options.
Lead time and payment terms?
Standard lead time 15–30 working days from deposit confirmation to FOB Shantou for any of the 3 SW-D / SW-L / SW-Y machines, built at ShengWei’s Guangdong factory. Payment: 30% deposit, 70% before shipment by T/T. Deep-custom builds run longer — up to 45 working days, depending on complexity. Sea freight transit: SE Asia 7–14 days, Middle East 18–25 days, Europe 30–40 days.
Can I run a sample test before commitment?
Yes. Ship 2–5 kg of your product (whole-bean coffee, loose-leaf tea, protein powder, etc.) plus 50 sample flat-bottom bags to our Shantou factory. ShengWei runs a packing test on the actual SW-D / SW-L / SW-Y machine matching your spec, records video of the fill cycle, and shares results with recommended speed and accuracy settings. Reach our sales team via the contact page for the shipping address.
Ready to spec your flat-bottom pouch line?
Send us your product type, fill weight, and bag dimensions. Our engineers usually reply within one business day with a sized quote, layout drawing, and sample-test plan tailored to your premium retail SKU — specialty coffee, loose-leaf tea, or sport nutrition.
