Double Material Feeding Full Automatic Pillow Packing Machine
SW-1000B
Dual-turntable candy flow wrapper that feeds two different materials into one pillow pouch simultaneously. Built on the same proven platform as the single-tray SW-1000A, the SW-1000B adds a second rotary candy turnplate so factories can produce mixed-content packs — such as two candy colours, two flavours, or two shapes in one sealed bag — at 50 to 400 bags per minute with touch screen control and automatic single-piece feeding from both trays.
Quality
CE Certified
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · 24 h Support
SW-1000B: Dual-Turntable Candy Wrapping for Mixed-Content Packs
The SW-1000B is a horizontal pillow pouch packing machine designed for factories that need to combine two different candy types in one sealed bag. Two independent rotary turntables — each with its own custom mold cavities and brush motor — deliver one piece from each tray into the wrapping path simultaneously. The result is a mixed-content pillow pouch containing two materials per pack, produced automatically at 50–400 bags per minute.
The wrapping platform shares the same stainless steel body, film forming section, sealing system, and outfeed conveyor as the SW-1000A single-turntable candy wrapper. The difference is purely at the feeding end: the SW-1000B is longer (4,100 mm vs 3,850 mm) and heavier (~830 kg vs ~720 kg) because it carries two turntable modules instead of one. For buyers who run a single candy type, the SW-1000A remains the more compact choice. For mixed assortments, gift packs, or promotional two-flavour combinations, the SW-1000B solves a problem that a single-tray machine cannot — without doubling the number of wrappers on the line.
Packing Speed
400 bags / min max
Film Width
50–160 mm
Product Size
10–50 mm length
| Parameter | SW-1000B |
|---|---|
| Machine Type | Double material feeding full automatic pillow packing machine |
| Suitable Product Size | L 10–50 mm · W 10–30 mm · H 4–25 mm |
| Film Width | 50–160 mm |
| Packing Speed | 50–400 bags/min |
| Applicable Products | Two-material candy combinations and regular-shape single materials |
| Feeding System | Dual rotary candy turntables with independent mold cavities and brush motors |
| Mold Options | Food-grade plastic mold or aluminium mold (one set per tray) |
| Brush Options | Scrubbing brush · Soft brush · Silicone brush (selectable per tray) |
| Electric Eye | High speed photoelectric eye for print-mark tracking |
| Control System | Touch screen + CPU control system · multi-language support · frequency converter |
| PLC Program | Optional |
| Temperature Control | Horizontal system + vertical system |
| Former | Made according to bag width |
| Cutting Knife | Selected according to sample size and bag length |
| Outfeed | Finished product conveyor |
| Power | 3.7 kW |
| Voltage | 220V 50/60Hz |
| Machine Weight | ~830 kg |
| Dimensions (L×W×H) | 4,100 × 1,300 × 1,600 mm |
Where the SW-1000B Dual-Feeding System Adds Value
The SW-1000B fills a specific gap: factories that want two different candy items in one sealed pillow pouch without running two separate wrapping machines or relying on manual pre-mixing. Each turntable operates independently — different cavity molds, different brush types, even different candy shapes — and the wrapping section combines both pieces in a single bag. That makes it the natural choice for candy packing machine applications that involve mixed-content retail packs, promotional assortments, or two-flavour gift combinations.
Mixed Candy Assortments
Two colours, shapes, or flavours in one bag
- Tray 1
- Hard candy — round, disc, or button shape
- Tray 2
- Mint, toffee, or second colour of the same brand
- Typical Speed
- ~200–400 bags/min
- Best Fit
- Retail mixed bags with printed film and two distinct items
- Buyer Type
- Confectionery brands offering variety packs
Promotional & Gift Packs
Two-product packs for seasonal campaigns
- Tray 1
- Main candy product
- Tray 2
- Promotional candy or trial-size item
- Typical Speed
- ~150–300 bags/min
- Best Fit
- Limited-edition packs, holiday assortments, brand sampling
- Buyer Type
- Candy exporters and OEM contract packers
Toffee + Hard Candy Combos
Different textures in one pack
- Tray 1
- Rigid hard candy — aluminium mold, scrubbing brush
- Tray 2
- Softer toffee or milk candy — plastic mold, soft brush
- Typical Speed
- ~150–250 bags/min
- Best Fit
- Mixed-texture bags where each tray handles different material properties
- Buyer Type
- Confectionery manufacturers with multiple SKU lines
Single-Material Mode
Use one tray only when mixed packing is not needed
- Mode
- Disable one turntable and run single-item wrapping
- Brush Type
- Same selection logic as the SW-1000A
- Typical Speed
- Comparable to SW-1000A single-tray output
- Best Fit
- Factories that sometimes run single and sometimes run mixed
- Buyer Type
- Plants that want one machine covering both production modes
For bulk multi-piece bags of loose candy or snack mixes, a collar type packing machine with multi-head weighing is usually the better choice — options include the SW-320C four-head linear weigher or the SW-320D volumetric cup system. For larger individual products such as biscuits, bread, or hardware items, the broader product range of the SW-350A general-purpose wrapper or the SW-350B film-beneath model will usually make more sense.
Output Bag Type: Pillow Pouch for Mixed Candy
The SW-1000B produces one bag format: the pillow pouch used for individually wrapped candy packs. The difference from a single-tray wrapper is what goes inside — two materials instead of one. Film is pulled from rollstock, formed around the combined product pair, sealed longitudinally, then cut and sealed transversely to produce a compact retail-ready pack. Buyers often describe the same output as a flow wrap, fin seal wrap, or back seal pouch. The machine does not use premade pouches and is not intended for stand-up, zipper, or flat-bottom bag formats.
Two materials combined in one pillow pouch
Rollstock film feeds into the shared forming area
Pillow Pouch (Standard Output)
Fin Seal / Back Seal Structure
Why this matters: the SW-1000B is for factories that need two candy pieces wrapped together automatically from film roll — not premade pouch loading or multi-piece bulk weighing. If you need stand-up pouches, zipper bags, or multi-piece retail bags, move to the premade bag packing machine family or a collar type multi-head weigher system.
How the SW-1000B Dual-Feeding Wrapping Cycle Works
The operating logic follows the same four-stage flow as a standard candy pillow wrapper — but with a doubled feeding front end. Two turntables work simultaneously, each delivering one candy piece into the shared infeed conveyor chain. From that point forward, the film forming, sealing, cutting, and discharge behave identically to a single-tray machine.
1. Dual Turntable Feeding
2. Roll Film Wrapping
3. Cutter Sealing

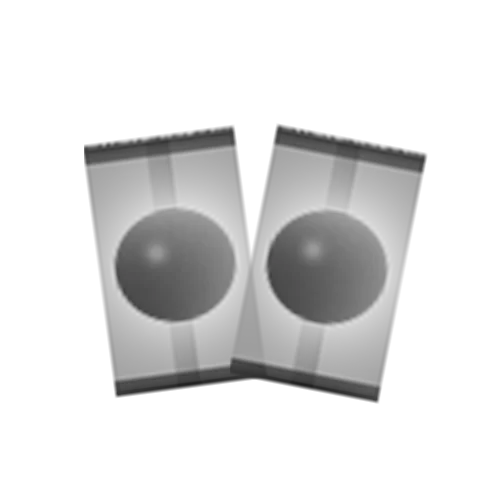

4. Finished Product
01
Dual Turntable Loading & Synchronized Separation
Bulk candy is loaded into two separate feeding zones, one per turntable. Each tray has custom-machined cavities sized to its specific candy type — the two trays do not need to carry the same product. As both trays rotate simultaneously, the selected brush type on each tray sweeps excess pieces away and ensures single-piece delivery from each turntable. The two streams merge onto the shared infeed conveyor chain, pairing one piece from Tray A with one piece from Tray B into each wrapping cycle. This is the core advantage of the SW-1000B: automatic two-material feeding that replaces manual pre-mixing or hand placement.
02

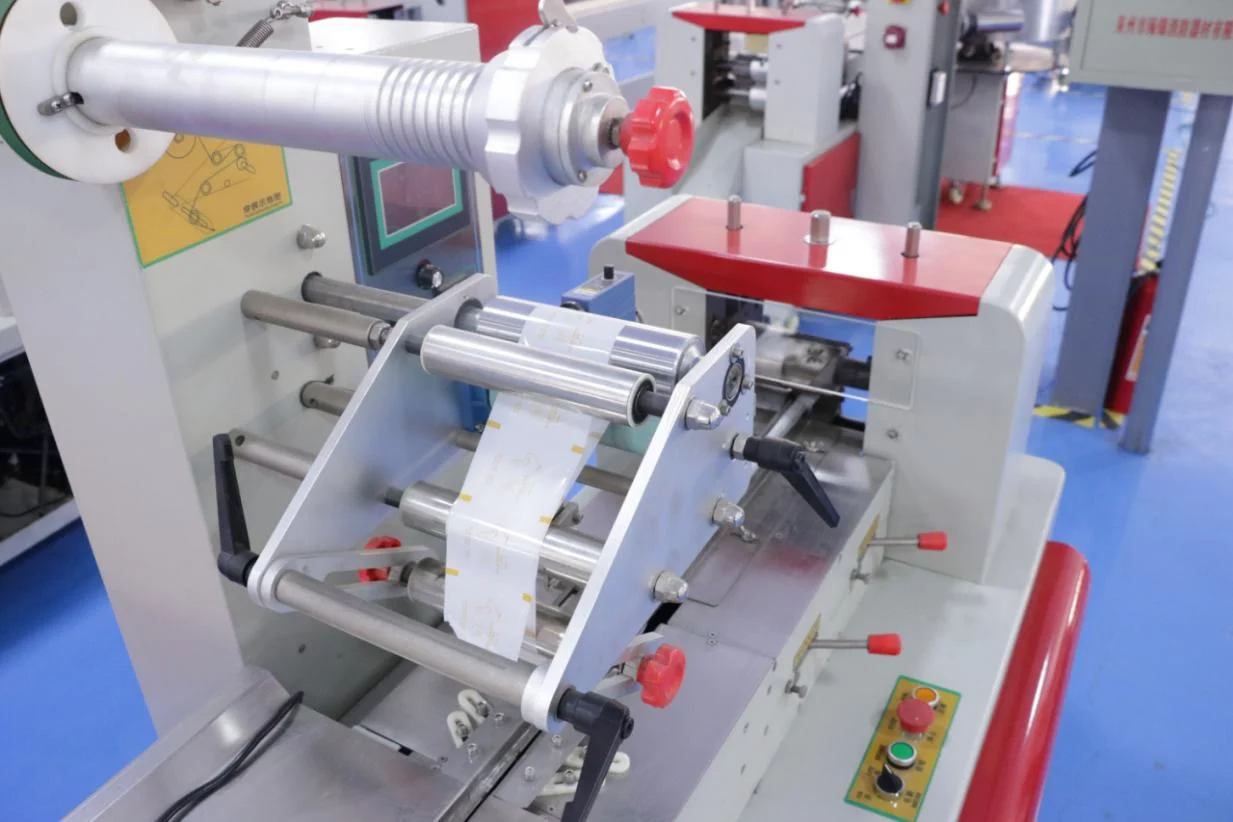

Film Feeding, Mark Reading & Bag Forming
Roll film is pulled through the feed rollers into the forming section, where the former is matched to the required bag width. A high speed photoelectric eye reads colour marks on printed film to keep registration aligned with the seal position. The control interface lets operators tune film feed and speed parameters according to bag pitch, film thickness, and product size. Because the SW-1000B places two items per bag instead of one, the former and bag pitch may be slightly wider than a single-piece setup — ShengWei confirms the right former specification after reviewing both candy samples and the target bag design.
03
Longitudinal Seal, End Seal & Knife Matching
Once the candy pair enters the forming zone, the film wraps around both pieces and the machine creates the longitudinal seal and cross seals. The cutting knife is selected according to combined sample size and bag length. Horizontal and vertical temperature systems are adjusted on the touch screen so the seal can be tuned for the specific film material being used. The sealing logic is identical to the SW-1000A — the only difference is that two products sit inside the film tube rather than one.
04
Finished Product Conveyor & Line Integration
After sealing and cutting, each mixed candy pack transfers onto the finished product conveyor for collection or downstream inspection. The output bag looks and feels like a standard candy pillow pouch — the difference is that the customer opens it and finds two items instead of one. In a typical factory layout, the machine can feed into date coding, metal detection, checkweighing, counting, or cartoning equipment. ShengWei can advise on line integration if the SW-1000B is part of a broader confectionery packing system rather than a standalone wrapper.
Gallery & Video
❮
❯
Dual candy turntable — two independent rotary trays deliver different candy types into one wrapping path
Core Mechanisms Behind Dual-Material Candy Wrapping
The SW-1000B is easier to evaluate when you understand the six subsystems that make dual-material feeding practical. The machine is not simply two turntables bolted onto a generic wrapper — it is a coordinated system where each stage is tuned for mixed-content pack reliability.
① Dual Candy Turntables with Independent Mold Cavities
Two separate rotary trays, each manufactured with custom cavities from the customer's candy samples. The trays rotate simultaneously but independently, meaning Tray A can carry round hard candy while Tray B carries rectangular milk candy. Each tray has its own brush motor with a selectable brush type — scrubbing, soft, or silicone — so the feeding action can be tuned to each candy's hardness and surface sensitivity separately.
② Touch Screen Control with Multi-Language Support
A central touch screen interface manages both turntables, film speed, seal temperature, and product parameters from one panel. The CPU control system supports multiple languages and stores production recipes so operators can switch between candy combinations without manual recalibration. A frequency converter button provides additional speed fine-tuning for different product weights and film types.
③ High Speed Photoelectric Eye Registration
Printed candy film needs accurate eye mark detection or the bag design drifts relative to the seal line. The high speed photoelectric eye mounted on the film path tracks colour marks in real time, maintaining registration accuracy even when the machine runs at production speed. This is especially important for mixed-content packs where the film artwork may reference both candy types.

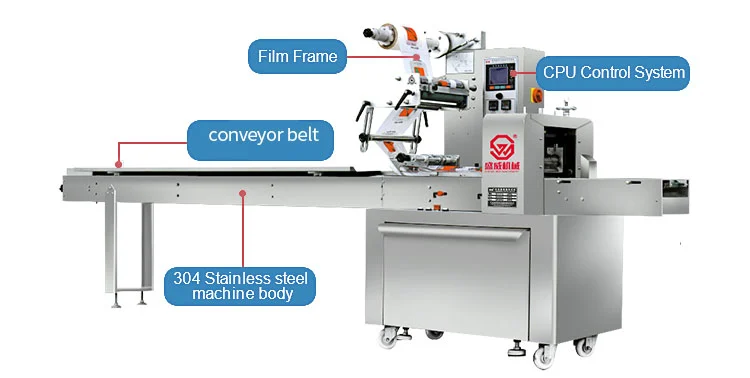

④ 304 Stainless Steel Body & Roll Film Shaft
The entire frame is 304 stainless steel construction, meeting food-grade hygiene requirements for candy production environments. The roll film shaft accommodates standard rollstock film widths up to 160 mm, and film changeover follows the same practical process as the single-turntable SW-1000A — the dual feeding system does not complicate film handling on the wrapping end.
Verified Detail Photos from the Actual SW-1000B
Close-up photos of the actual machine showing the dual candy turntable, control interface, former, and electrical layout. These are real machine images — not generic stock graphics.

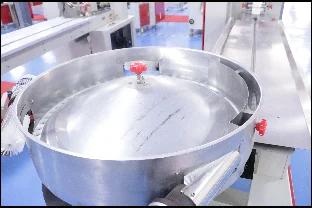

Dual Candy Turntable
Two independent rotary trays with custom cavity molds. This is the defining subsystem that separates the SW-1000B from single-tray candy wrappers — each tray delivers a different candy type into the shared wrapping path.

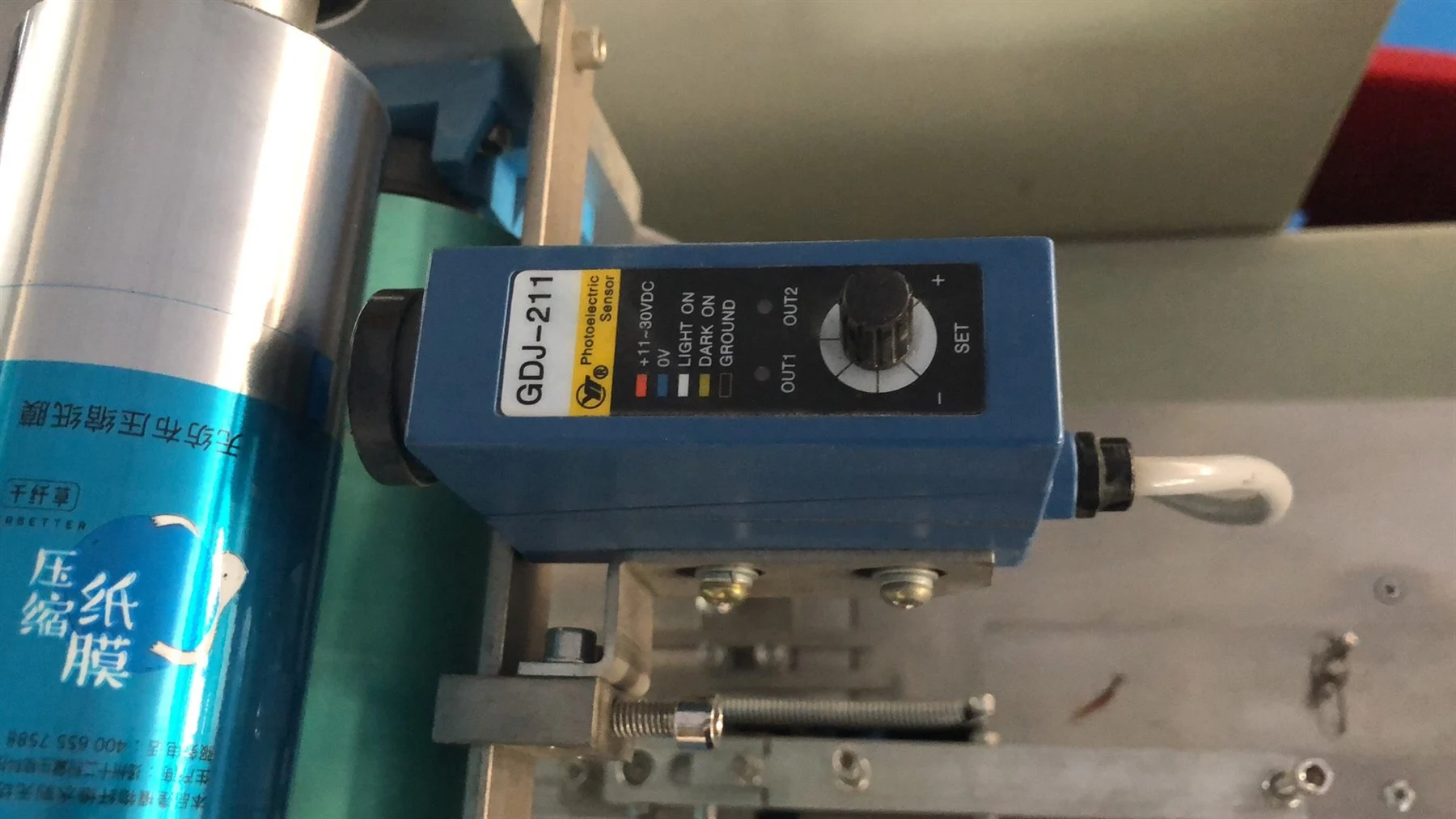

Photoelectric Eye Sensor
High speed eye mark detector for accurate printed film registration. Keeps seal position and artwork alignment consistent on branded mixed-candy packs.

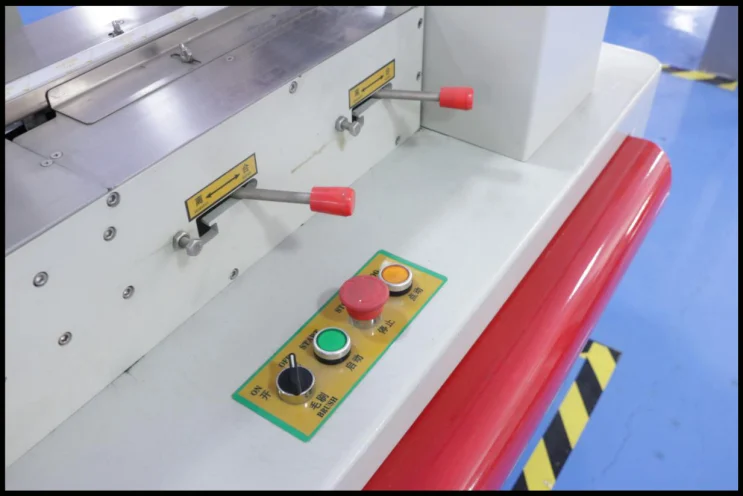

Control Button Panel
Physical operator controls for start, jog, emergency stop, and brush on/off. The separation/reunion button allows operators to engage or disengage the dual turntable system as needed during production.

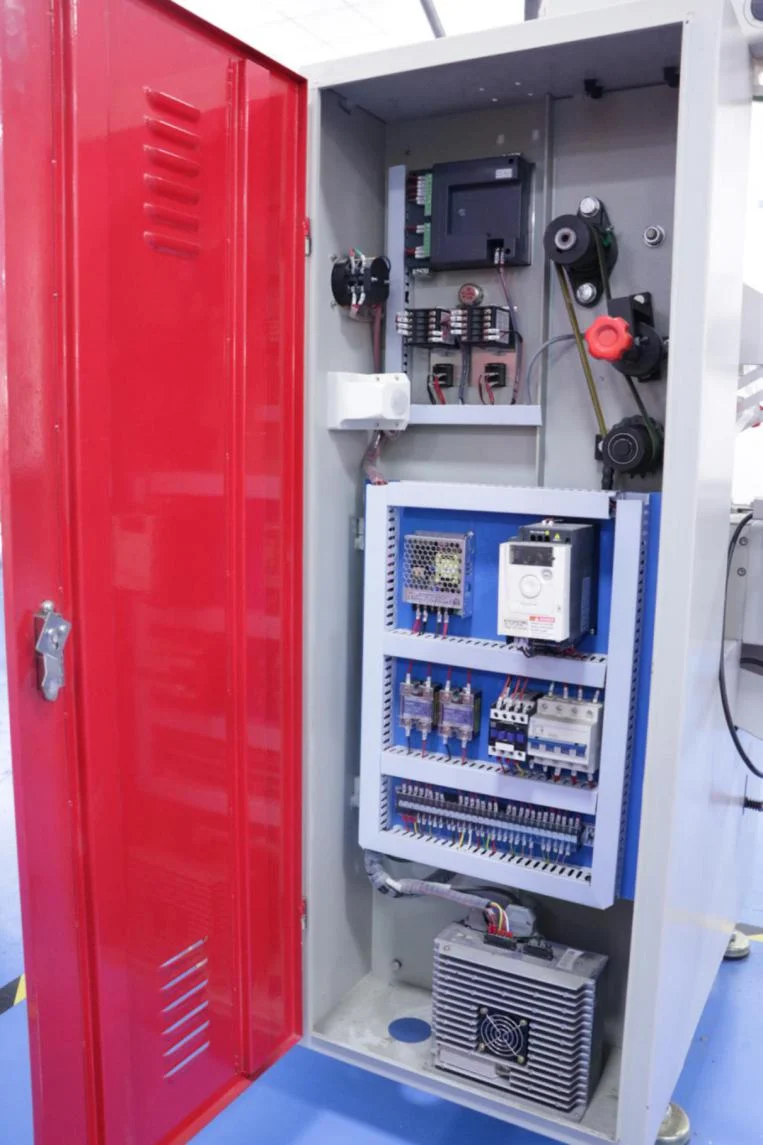

Electrical Cabinet Layout
Internal electrical arrangement with frequency converter, breakers, and organized wiring. Accessible layout for daily maintenance and service in production environments.
Bag Former
Custom-manufactured former that shapes flat rollstock film into the pillow pouch tube. Made according to target bag width — slightly wider formers may be specified for dual-material packs that carry two candy pieces side by side.
End Sealer & Bag Discharge
Cross-seal and cutting station where the finished mixed candy pillow pouch is released. Knife geometry is selected according to combined sample size and target bag length.
SW-1000B vs SW-1000A — Single Tray or Dual Tray?
Both machines share the same wrapping platform, film system, sealing mechanism, and stainless steel body. The only structural difference is the feeding end: one turntable versus two. That simple hardware distinction determines which production scenarios each machine handles best.
Choose SW-1000B When:
- You need two different candy types in one sealed bag — different colours, shapes, or flavours
- You run promotional or gift assortment packs where mixed content is the product format
- You want one machine that can switch between dual-material mode and single-material mode
- Each tray needs independent mold and brush configuration for different candy properties
- 50–400 bags/min is sufficient speed for your mixed-content production volume
Choose SW-1000A When:
- You only wrap one candy type per bag and do not need dual feeding
- You want a more compact machine (3,850 mm vs 4,100 mm length)
- You need slightly higher top speed (up to 500 bags/min vs 400)
- You want a lighter machine (~720 kg vs ~830 kg) for easier installation
- Your production does not require mixed-content packs now or in the near future
When Neither SW-1000 Model Is the Right Fit
Both SW-1000 models are for small candy wrapping with turnplate feeding. For wider product ranges and general-purpose solid packing, choose the SW-350A multifunctional wrapper or SW-350B film-beneath model. For higher-speed candy wrapping with three-servo architecture, see the SW-1200 three-servo candy machine. For multi-piece bags of loose candy or snack mixes, use the collar type multi-head weigher machine. For premade pouch formats such as stand-up, zipper, or flat pouch, move to the SW-D premade bag granule machine or SW-L premade bag powder machine. For liquid filling, the SW-Y premade bag liquid machine handles that format. For vacuum-sealed food pouches, see the SW-130ZK vacuum packing machine.
Why Choose ShengWei Machine for Dual-Feeding Candy Projects
Factory Direct with Dual-Tray Expertise
ShengWei manufactures packaging machinery in Guangdong and works directly with overseas buyers, distributors, and factories. The SW-1000B is a specialty machine — dual-turntable candy wrapping requires two sets of cavity molds, two brush configurations, and careful coordination between feeding and wrapping. Working factory-direct means these dual-system details are confirmed in the engineering conversation before production, not discovered after delivery.
Independent Mold Design for Each Tray
Because the two turntables carry different candy types, each tray gets its own custom mold based on actual product samples. ShengWei designs and manufactures both mold sets in-house — food-grade plastic or aluminium depending on candy properties — and tests both trays together before shipment. This is a critical detail for dual-feeding projects: mismatched mold quality or timing between trays directly affects mixed-pack consistency.
Export Support with Practical Communication
Remote support through WhatsApp, video, and online troubleshooting reduces commissioning friction for overseas customers. Dual-tray machines need slightly more setup discussion than single-tray models — brush behaviour, tray synchronization, and mixed-content bag appearance all benefit from clear, responsive factory communication during the first weeks of production.
Food-Oriented Machine Build Logic
The SW-1000B is built for confectionery production with 304 stainless steel construction, food-contact cleaning, and retail film presentation. It fits naturally inside food packaging machine and food packaging solution requirements. For liquid food applications such as sauces or cooking oils, ShengWei also manufactures the SW-420F collar type liquid packing machine.
What Our Clients Say
We needed to pack one round mint and one square toffee together in a promotional bag for a supermarket chain. Before the SW-1000B, our operators were hand-placing both items onto the infeed belt — slow, inconsistent, and expensive on labour. The dual turntable solved this completely. Each tray has its own cavity mold and the machine handles the pairing automatically. We run about 250 bags per minute now, and the bag appearance is much more consistent than manual feeding ever was.
Ahmed K.
Production Director — Confectionery Factory, Egypt
Our company makes candy gift sets for export, and each pack contains two different candy types. We compared the SW-1000B against buying two separate single-tray machines and manually combining the outputs. The dual-feeder saved us floor space, one operator position, and simplified our line layout. ShengWei also made us extra mold sets so we can switch candy combinations for seasonal promotions without waiting for new tooling.
Linh T.
Export Manager — Candy OEM Supplier, Vietnam
Frequently Asked Questions
What makes the SW-1000B different from the SW-1000A?
Can I run the SW-1000B with only one turntable active?
What products can the SW-1000B pack?
Can the two turntables carry different candy shapes?
What is the actual packing speed for mixed candy bags?
What film materials and bag widths does the machine support?
Do I need two sets of molds?
Is PLC control available on the SW-1000B?
What is the lead time and how is payment handled?
What warranty and after-sales support is included?
