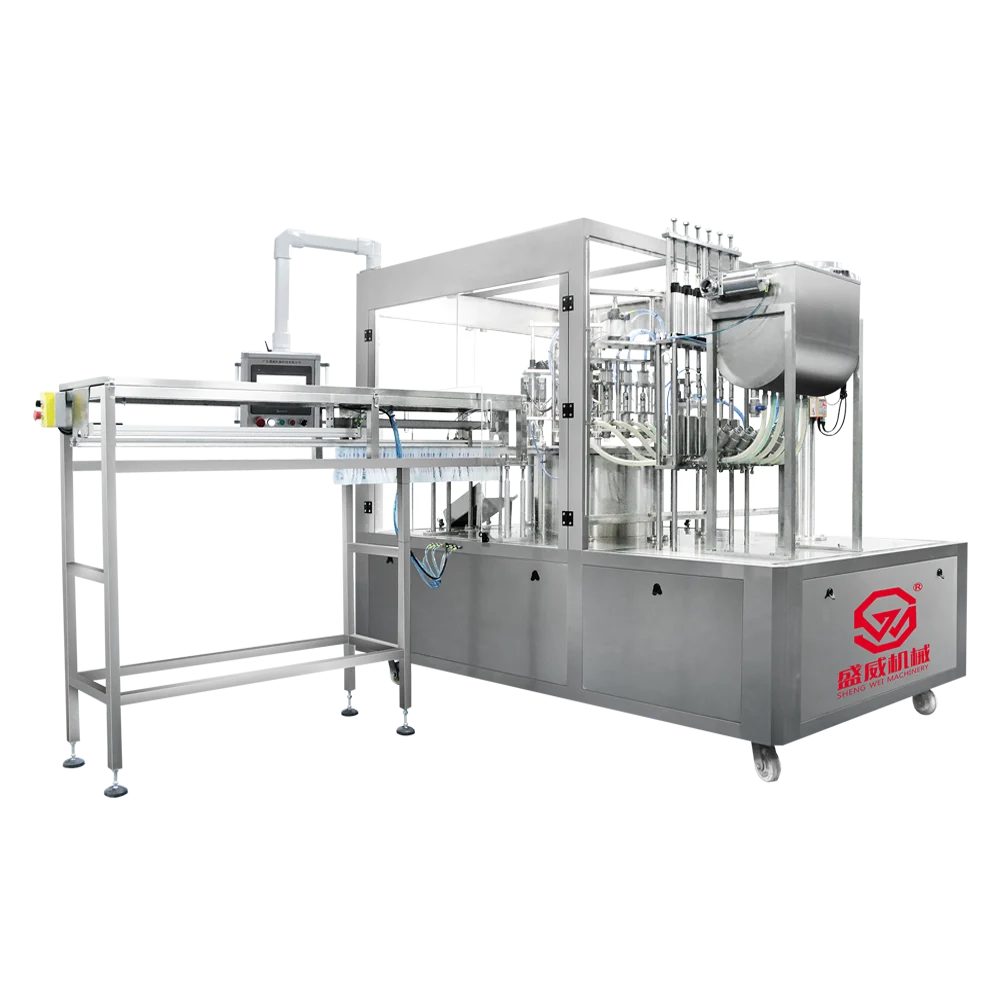

Spout Pouch Filling and Capping Machine
Automatic Pouch Filling and Capping Machine
Model No. : SW - CCS6
Packing Speed: 3000 to 9000 bags / min
(Depends on products' type and filling volume)
suitable packaging bag types
Suitable for filing and capping the package of jelly, milk, soft-drink ice cream, cooking oil, commodity products.
Machine Parameters & Specification
| Machine Parameters | Specifications |
|---|---|
| Max Bag Size | Width (W): 120mm, Height (H): 260mm |
| Packing Speed | 3000-9000 bags/hour |
| Dimensions | L(1700+2200)×W(2500+900)×H2100mm |
| Gross Weight | Approximately 2300+750kg |
| Air Consumption | 0.6-1.2 m3/min |
| Wide Range of Bags | Center Distance: 90mm |
| Filling Volume | 60-300ml |
| Voltage | 380V/220V (Three-phase, Four-wire) |
| Total Power | 3.5KW |
Features
- TOUCH SCREEN: Using Germany Siemens PLC Control System: All parameter control in one screen, convenient operation.
- CUSTOMIZE MULTI-NOZZLES: According to the bag sizes and capacity request, will suggest you the suitable nozzle model.
- AUTO SPOUT POUCH FEEDING TRAY: Smart Cylinder feeding, dual direction feeding and return to collect.
- VIBRATION DISK: Auto spout cap tidying and feeding.
- MUTI-CAPPING PORT: Same port quantity as filling nozzle, twisting force and speed could be directly easy setting on the control screen too.
- STORAGE TANK: Customizable tank type: Could add mixing and heating function.
- AUTO SPOUT CLEANING: Auto spout cap washing and air drying after filling.
Working Process
Characteristics
PLC Human-Machine Interface (HMI) Control System: Featuring a stainless steel frame structure, our system ensures cleanliness and hygiene, with a compact and rational design. Protective covers guarantee air purification and maintain a sanitary production environment. Our system offers full automation, including bag feeding, filling, automatic cap tightening, cap placement, cap screwing, and automatic bag retrieval. Additionally, it comes equipped with an automatic cleaning spout and CIP (Clean-in-Place) cleaning system. Furthermore, we can customize the functionalities according to the specific requirements of our customers.
MULTIPLE LANGUAGE SYSTEM
Default language including :Chinese, English ,Korean, French, ArabicRussian, Spanish language .(Can be set and input other language)
