Full Automatic Tidying Feeding Pillow Pouch Packaging Machine
Model No. : SW-300B
Packing Speed: : 50 to 1200 bags / min
(Depends on products' type and filling volume)
suitable packaging bag types
Suitable for packing viscous material such like preserved fruits, jelly candy, fresh fruit and vegetable etc.
Machine Parameters & Specification
| Parameter | Specifications |
|---|---|
| Wrappage Size | Length (L): 20-150mm, Width (W): 10-60mm, Height (H): 5-30mm |
| Packing Speed | 50-1200 bags/min |
| Roll Film Width | ≤320mm |
| Max. Diameter of Film | φ320mm |
| Gross Weight | Approximately 3500kg |
| Dimensions | L9000×W1200×H1700mm |
| Voltage | 380V 50Hz |
| Gross Power | 9.5KW |
Features
- Filling stations that handle pre-made bags in one automatic packaging system.
- Automatic placement and transfer of bags into the proper position for packaging.

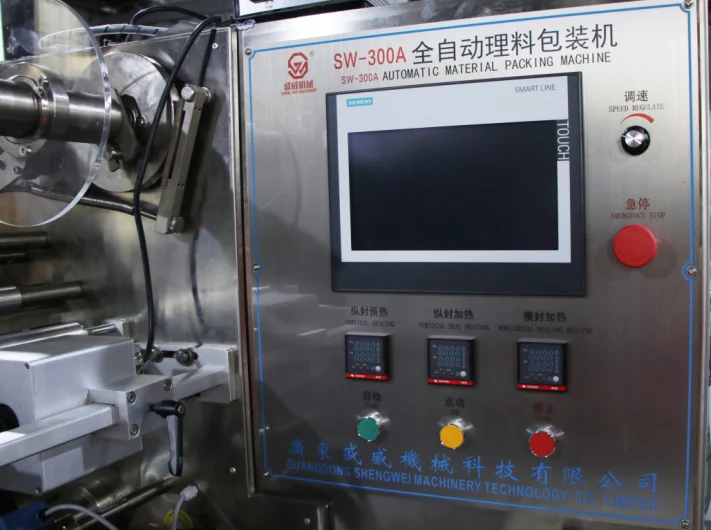

- Siemens PLC control supports touch-screen operation.
- Extensive choice of languages for use.
- Automated machine can print date codes.
- 304 stainless steel.
- A secure environment is provided in memory for 100 product recipes.
- Gripper size, machine speed, sealing temperature, and filling volume are all stored in production parameter memory.
- Bag deflation is controlled by either wire guide or push bars.
- The two-stage sealing system ensures no product remains.
- Cooling station designed for liquid.
Working Process
Film Material
Laminated rollstock film, laminated paper roll stock film, aluminum foil roll stock film, etc.
Character of packing machine
Full automatic feeding, sending material, printing date, install the double roll film structure which can automatically change the film and no need stopping the machine, save the time and effort.
