3 Side Seal Pouch Packing Machines
Two ShengWei vertical form-fill-seal lines producing flat 3-side seal sachets from rollstock film. Three sealed edges plus one folded edge mean one seal fewer than a same-size 4-side seal sachet and a compact flat format on the shelf. Used worldwide for sugar, salt, spice, ketchup, sauce, snack, candy, and dried fruit single-serves; speed depends on the model and lane count.
-
200–300Max Bags / Min (SW-A6)
-
±1 g / ±1%Filling Accuracy (SW-1328)
-
SUS304Stainless Steel
Quality
CE Certified · SUS304
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · Lifetime Remote Support
3-Side Seal Sachet — Quick Reference
| Definition | Flat sachet with three sealed edges plus one folded edge — formed from a single roll of film, with one seal fewer than a same-size 4-side seal sachet. |
|---|---|
| Best for | Single-serve sugar, salt, spice, ketchup, sauce, snack, candy, dried fruit sachets — speed depends on the model and lane count. |
| Machine match | ShengWei vertical form-fill-seal lines (SW-A6, SW-1328). |
| Limitations | Not self-standing; no integrated zipper without conversion; minimal shelf appeal — not the right choice for premium retail or reseal SKUs. |
What product categories use 3-side seal sachets?
Single-serve, trial-size, and hospitality formats are typical 3-side seal uses — any product where bag cost per unit matters more than premium shelf appeal. Below are four common 3-side seal product categories.
Spice & Seasoning
Chili powder, salt, sugar, MSG, ground spices, soup base. A core 3-side seal segment.
Snack & Biscuit
Stick biscuits, mini crackers, coated peanuts, wafers, cereal bars.
Dried Fruit & Nuts
Trail mix, raisins, mango slices, cashews, granola in impulse-buy sachets.
Candy & Confectionery
Gummies, hard candy, jelly bites, fruit chews. Zipper-reseal option on 3-side seal converts an impulse pack into a daily-use SKU — see zipper pouch machines for the configuration.
Two ShengWei machines produce 3-side seal sachets.
Vertical form-fill-seal (VFFS) lines form the bag from rollstock and fill in a continuous downward pass — ideal for high-speed multi-lane production. Pick by speed, lane count, and filler type.

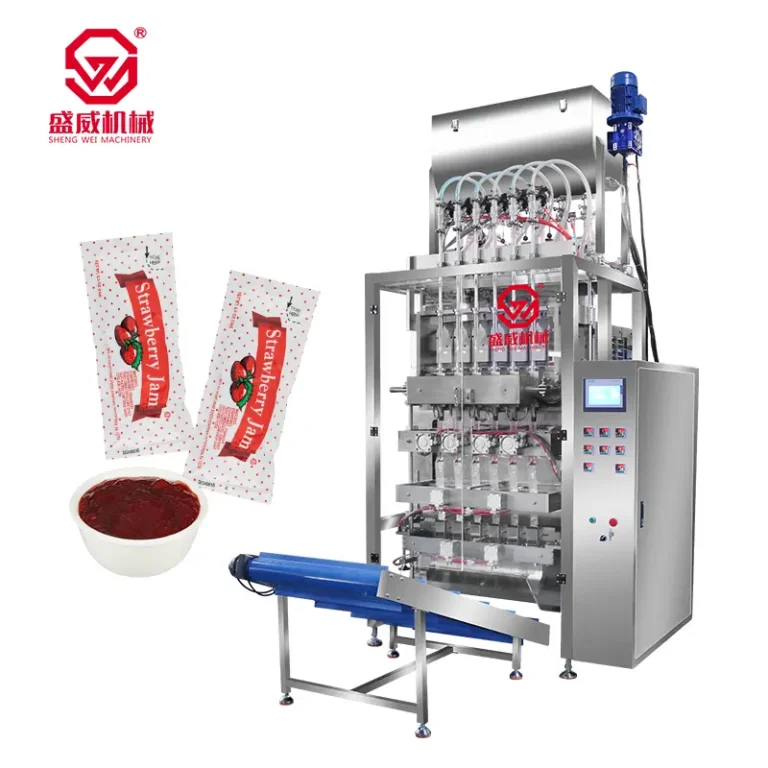

6-Column High-Speed
Six parallel lanes triple per-machine output for small sachets — strawberry jam, instant coffee, ketchup single-serves, sample sachets. The dosing unit — piston pump, auger or measuring cup, chosen for the product — fills all 6 lanes simultaneously. Maximum 200–300 bags/min for the whole machine.
View 6-Column →

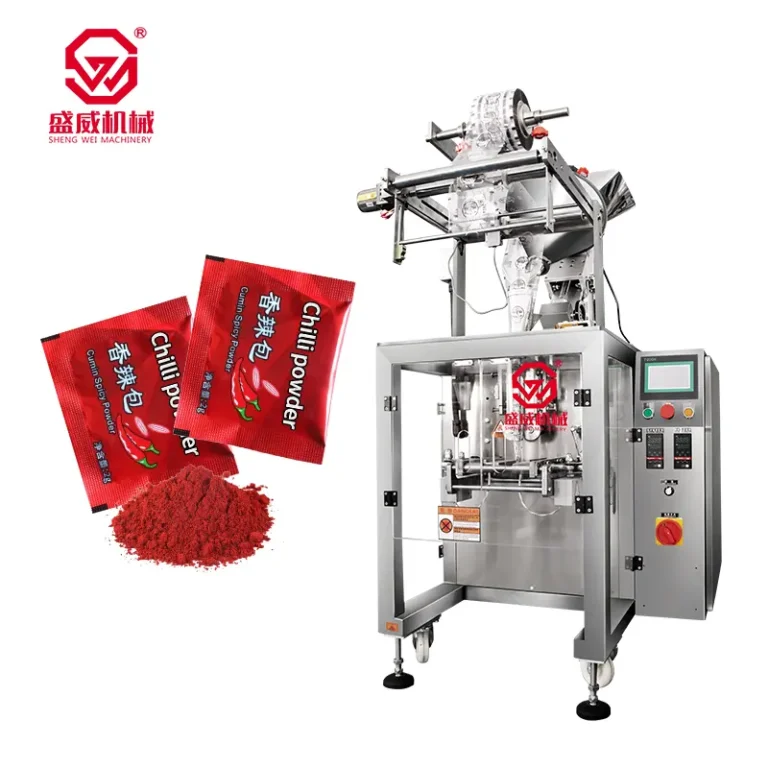

Single-Lane Vertical
General-purpose single-lane vertical machine for medium-volume 3-side seal sachet production. The filling station is customized to the product — measuring cup, auger, or liquid pump. Best for small coffee, spice, or nut sachets.
View SW-1328 →Specifications: SW-A6 and SW-1328
Below are the six-lane SW-A6 and the single-lane SW-1328. Full specs are available on each model’s detail page (see machine lineup above).
| Spec | SW-A6 (6-Lane) | SW-1328 |
|---|---|---|
| Bag Pattern | 3-side seal | 3-side seal |
| Bag Width | 30–100 mm (per lane) | 40–140 mm |
| Bag Length | 50–150 mm | 50–130 mm |
| Fill Range | 5–30 ml | — |
| Speed | Max 200–300 bags/min (whole machine) | 50–70 bags/min standard; max 60–100 |
| Filler Type | Piston pump / auger / cup (per product) | Cup / auger / liquid pump |
| Material | SUS304 | SUS304 |
| Power | 6 kW | 1.52 kW |
When to choose 3-side seal vs alternatives
3-side seal is a low-cost flexible format and the workhorse of single-serve. But if you need shelf presence or daily-use reseal, another bag style may serve you better. Honest trade-off below.
3-Side Seal Sachet
- Low material cost per unit
- Compact flat format for bulk transport
- Best for single-serve and trial sizes
- Wide industry use (food, hospitality, samples)
- Optional zipper for daily-use reseal SKUs
You are reading this page
Stand-Up Pouch (Doypack)
- Excellent shelf presence and vertical face
- Self-standing for premium retail impact
- High barrier protection options
- Resealable zipper for daily-use SKUs
- Higher film cost per bag
Back-Seal Pillow Pouch
- High production speed (200+ bpm multi-lane)
- Cost-effective for high-volume single SKUs
- Common in flow-wrapped chips and candy
- Lightweight and compact for shipping
- Single-fin seam down the back
FAQ
What’s the smallest sachet size you can run on a 3-side seal machine?
On the SW-A6 multi-lane VFFS, individual sachets can go down to 30×50 mm (metering range 5–30 ml). For long, narrow stick formats, see our 4-side seal stick pack page.
Can I run liquid in 3-side seal sachets?
Yes. The SW-A6 multi-lane vertical fills liquids and semi-fluid sauces (ketchup, salad dressing and similar products) in 3-side seal sachets with the piston pump option. Pillow-pouch fin-seal is an alternative format; see back-seal pillow pouch.
Can a 3-side seal sachet have a zipper for resealable hospitality items?
Yes — gummy candy, chewy snacks, dried fruit, and pet treats all use 3-side seal with press-to-close zippers. Zippered 3-side seal pouches come premade from your bag converter and run on premade-bag fillers; ShengWei rollstock machines do not add zippers in-line. See our zipper pouch packing machine page for the zipper module configuration and supported zipper types.
What films and laminates work with 3-side seal sachets?
3-side seal sachets accept PET/PE, PET/AL/PE (foil laminate for high-barrier), kraft paper laminate (for premium positioning), recyclable mono-PE, OPP/PE for low-cost SKUs, and metallized films from 50–120 micron thickness. Sealing temperature, jaw pressure, and dwell time are all adjustable per film type via the HMI. Ship a sample bag and product to our Guangdong factory for a sealing test before commitment. To understand how the three sealed edges of a sachet are formed — and how heat-seal versus impulse methods affect seal strength on thin OPP/PE films — see our bag sealing methods guide.
What’s the typical cost per sachet?
Rollstock film is priced by area, so the cost per sachet depends on bag size, film structure and barrier, print, zipper option, and order volume — ask your film supplier to quote your exact sachet dimensions. Multi-lane high-speed lines (SW-A6) reduce labor cost per bag substantially compared to single-lane.
Lead time and payment terms?
Standard lead time 15–30 working days from deposit confirmation to FOB Shantou for standard configurations; the six-lane SW-A6 takes 30–45 working days. Payment: 30% deposit, 70% before shipment by T/T. Deep-custom builds run longer — up to 45 working days, depending on complexity. Sea freight transit: SE Asia 7–14 days, Middle East 18–25 days, Europe 30–40 days. ShengWei has been building packaging machines in Guangdong since 2008.
Can I run a sample test before commitment?
Yes. Ship 2–5 kg of your product (powder, granule, liquid, or solid) plus a sample bag to our Shantou factory. ShengWei runs a packing test on the actual machine, records video of the run, and shares results with recommended speed and fill settings. Reach our sales team via the contact page for the shipping address.
Ready to spec your 3-side seal sachet line?
Send us your product type, sachet dimensions, and target output. Our engineers usually reply within one business day with a sized quote, layout drawing, and sample-test plan tailored to your line — single-lane or multi-lane vertical.
