4 Side Seal Pouch Packing Machines
Two ShengWei vertical form-fill-seal lines producing 4-side seal sachets and stick packs — flat sachets sealed on all four edges from two film webs, a common single-serve format for instant coffee sticks, electrolyte hydration, and dipping-sauce sachets. Multi-lane configurations parallelize 6 lanes simultaneously for high single-SKU throughput.
-
200–300Max Sticks / Min (SW-C6)
-
±1 g / ±1%Filling Accuracy (SW-1528)
-
SUS304Stainless Steel
Quality
CE Certified · SUS304
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · Lifetime Remote Support
4-Side Seal Stick Pack — Quick Reference
| Definition | Flat sachet or stick pack sealed on all four edges — formed from two film webs, the cleanest single-serve format with a precise dose per unit. |
|---|---|
| Best for | Instant coffee sticks, electrolyte & hydration sticks, dipping-sauce sachets. |
| Machine match | ShengWei 4-side seal vertical form-fill-seal lines — SW-C6 multi-lane stick pack and SW-1528 single-lane sachet. |
| Limitations | Requires two film rolls — higher film cost than 3-side seal; flat format only; not the right choice for bulk packs or large-format retail SKUs. |
What product categories use 4-side seal sachets?
Single-serve, on-the-go, and travel-pack SKUs are typical 4-side seal uses — the flat sealed-on-all-edges format is the cleanest stick pack or square sachet you can produce, with a precise dose per unit and minimal film waste. Below are three common 4-side seal product categories on ShengWei vertical lines.
Instant Coffee Sticks
2-in-1, 3-in-1 instant coffee, mocha, cappuccino single-serve in long narrow stick packs. SW-C6 6-column or SW-1528 single-lane handles these coffee fills.
Electrolyte & Hydration Sticks
Sport hydration mix, electrolyte powder, vitamin C drink mix, BCAA single-serve. "1 stick = 1 bottle" is a common travel format in sport nutrition. SW-C6 6-column auger or piston filler runs 6 lanes parallel for high-volume single-flavor production.
Sauce & Condiment Sachets
Hot pot dipping sauce, soy sauce, ketchup single-serve, salad dressing, restaurant condiments. Square 4-side seal sachet (6×8 cm) holds 10–30 g of viscous liquid cleanly without leakage. SW-1528 piston pump or SW-C6 multi-lane for high-volume hospitality runs. Honey sticks run on the SW-C6 or SW-1528 with a piston pump, and the SW-C6 has a heated option for honey.
Two ShengWei vertical lines produce 4-side seal sachets.
Two production tiers serve different volume needs. Multi-lane SW-C6 parallelizes 6 lanes for extreme single-SKU throughput on stick packs (instant coffee, electrolyte). Single-lane SW-1528 covers smaller-volume SKUs with broader bag-size flexibility. Both form the bag from rollstock film and seal on all four edges in one continuous downward pass.

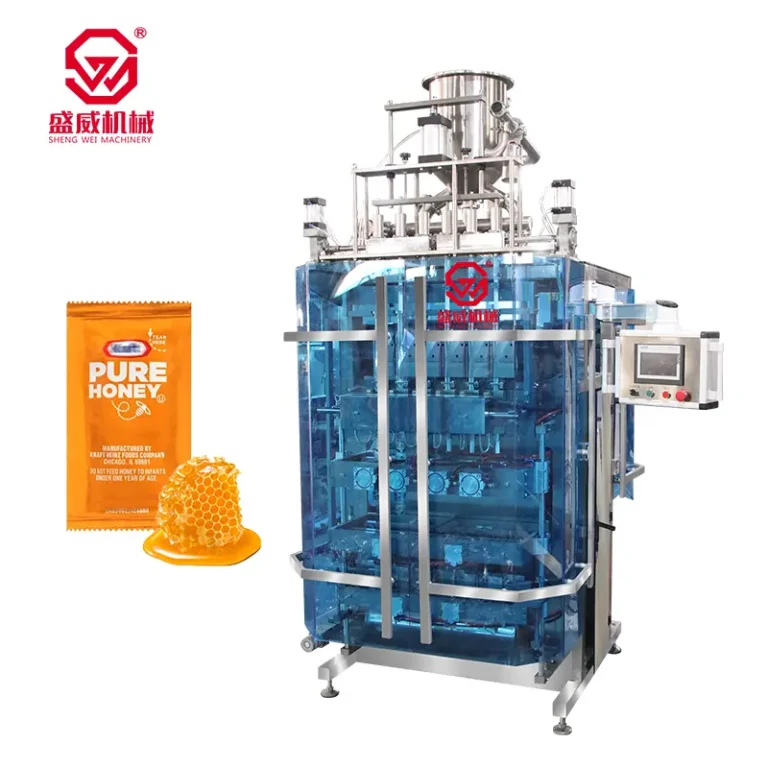

6-Column High-Speed Stick Pack
Six parallel lanes triple per-machine output for stick packs and small sachets — instant coffee, electrolyte, hydration mix, sugar sticks, single-serve seasoning. Multi-lane auger or pump fills all 6 lanes simultaneously per cycle. Highest 4-side seal throughput in the lineup.
View 6-Column Stick Pack →

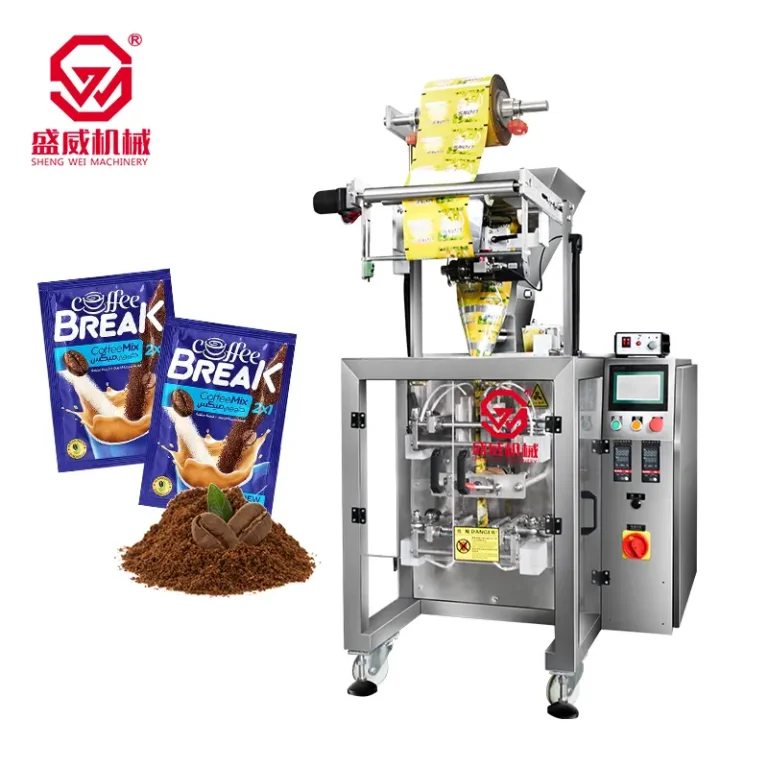

Single-Lane 4-Side Seal
General-purpose single-lane vertical machine for medium-volume 4-side seal production at larger sachet widths than the SW-C6 multi-lane can handle. Accepts auger, piston, or measure-cup filling stations — configured to order. Best for sauce, ketchup, condiment, and instant beverage powder sachets.
View SW-1528 →Specifications: Both Machines
| Spec | SW-C6 (6-Lane) | SW-1528 |
|---|---|---|
| Bag Pattern | 4-side seal stick pack | 4-side seal sachet |
| Bag Width | 30–70 mm/lane | 25–140 mm |
| Bag Length | 50–150 mm | 50–150 mm |
| Fill Range | 5–30 ml | — |
| Speed | Max 200–300 sticks/min (whole machine) | Max 60–100 sachets/min |
| Filler Type | 6-lane auger / pump | Auger / piston / cup |
| Material | SUS304 | SUS304 |
| Power | 6 kW | 1.5 kW |
When to choose 4-side seal vs alternatives
4-side seal wins on stick-pack shape for single-serve. But for cheaper trial-size sachets, 3-side seal uses less film. Honest trade-off below.
4-Side Seal Stick Pack
- Long narrow stick pack format for portable single-serve
- Multi-lane (6 lanes) for extreme single-SKU throughput
- Standard for instant coffee, electrolyte, supplement
- Two film webs sealed on all four edges
You are reading this page
3-Side Seal Sachet
- One folded edge + 3 sealed edges = less film waste
- Lower film cost per bag than 4-side seal
- Best for trial-size and hospitality sachets
- Single film web folded over itself
Back-Seal Pillow Pouch
- High production speed (200+ bpm multi-lane)
- Low film cost per bag at high volume
- Standard for chips, snack, candy, frozen
- 10-column SW-B10 for stick-pack-scale single-serve
- Single fin seam down the back, top & bottom seal
FAQ
What’s the difference between 4-side seal and stick pack?
"Stick packs" are long, narrow single-serve sachets for instant coffee, electrolyte sticks, and sugar sticks. They are commonly formed with a back seal plus top and bottom seals — the ten-lane SW-B10 runs back-seal sticks. A 4-side seal stick, like those from the six-lane SW-C6, is sealed on all four edges; the same 4-side seal format also makes square sachets (6×8 cm sauce, condiment).
How does 4-side seal differ from 3-side seal in production?
4-side seal uses two separate film webs (front + back) sealed together on all four edges, while 3-side seal uses one film web folded over itself with the fold becoming one of the four edges. 4-side seal gives a flat printable surface on both faces (better for branding) while 3-side seal uses less film. See our 3-side seal page for the alternative.
What’s the speed difference between SW-C6 multi-lane and SW-1528 single-lane?
SW-C6 6-column reaches a maximum of 200–300 sticks/min for the whole machine. SW-1528 single-lane reaches a maximum of 60–100 sachets/min, with a broader bag-width range up to 140 mm. Pick SW-C6 when you have a single high-volume small-fill SKU (instant coffee, electrolyte stick) where parallelizing 6 lanes makes economic sense; pick SW-1528 for general-purpose 4-side seal at moderate volume with format flexibility.
Can these machines handle viscous sauce in 4-side seal sachets?
Yes — the SW-1528 with piston pump filler handles ketchup, soy sauce, hot pot dipping sauce, salad dressing in square 4-side seal sachets. Anti-drip nozzle prevents leakage between cycles. For high-volume liquid stick packs (jelly bar, energy gel), see back-seal jelly bar stick on the SW-2830A instead.
What films and laminates work for 4-side seal?
PET/AL/PE foil laminate is standard for instant coffee and electrolyte sticks (high oxygen barrier needed). Metallized PET for premium stick-pack appearance. PET/PE for sauce and condiment sachets. Recyclable mono-PE emerging for sustainable retail SKUs. Sealing temperature, jaw pressure, and dwell time adjustable per film type via HMI — ship sample film to our Guangdong factory for a sealing test before order. For a deeper look at how the four sealed edges of a stick pack are formed and tested for leak integrity — covering heat-seal, impulse, and the foil-laminate sealing window — see our bag sealing methods guide.
Can I run baby formula safely on these machines?
Infant formula is a regulated product. Whether a 4-side seal line suits it depends on powder characteristics, the auger dosing configuration, contact materials and dust-control requirements — confirm these with us via the contact page before you choose a machine.
Lead time and payment terms?
Standard lead time 15–30 working days from deposit confirmation to FOB Shantou for the SW-1528; the six-lane SW-C6 takes 30–45 working days. Machines are built at ShengWei’s Guangdong factory. Payment: 30% deposit, 70% before shipment by T/T. Deep-custom builds run longer — up to 45 working days, depending on complexity. Sea freight transit: SE Asia 7–14 days, Middle East 18–25 days, Europe 30–40 days.
Can I run a sample test before commitment?
Yes. Ship 2–5 kg of your product (instant coffee powder, electrolyte mix, sauce concentrate) plus a sample film roll to our Shantou factory. ShengWei runs a packing test on the actual SW-C6 / SW-1528 machine matching your spec, records video of the run, and shares results with recommended speed, fill, and seal settings.
Ready to spec your 4-side seal stick pack line?
Send us your product type, target output, and stick / sachet dimensions. Our engineers usually reply within one business day with a sized quote, layout drawing, and sample-test plan tailored to your SKU — multi-lane SW-C6 stick pack or single-lane SW-1528 general-purpose.
