Automatic Vertical Triangle Packing Machine
SW-1022 · Triangle Bag · Powder & Granule
Compact vertical form-fill-seal machine that produces distinctive pyramid-shaped triangle bags for candy, nuts, tea, spices, and seeds. The SW-1022 is the only triangle bag machine in the ShengWei product lineup — designed for small-dose, high-value products where the pouch format serves as both packaging and point-of-sale display. PLC control, servo-driven film feed, 304 stainless steel contact surfaces, and a forming tube system purpose-built for the triangle bag geometry.
Quality
CE Certified
Source
Factory Direct · Guangdong
Customization
OEM · Voltage · Language
After-Sales
2-Year Warranty · Lifetime Remote Support
SW-1022: Vertical FFS for Triangle Bags
The SW-1022 is a vertical form-fill-seal machine engineered specifically for the triangle bag format — a back-seal triangle bag, also called a pyramid bag. Film feeds from a rear-mounted roll, wraps around a purpose-designed forming tube, and is closed with a back seal and cross seals to produce a distinctive pyramid-shaped sachet that stands out on retail shelves and in impulse display racks.
Unlike conventional vertical packing machines that produce flat-profile back-seal or 3-side-seal sachets, the SW-1022 creates a three-dimensional pouch with visible product through the film window. This format is particularly popular for candy, chocolate balls, coated nuts, loose tea, ground spice, and seeds. The shape allows the filled product to settle into a stable pyramid, giving each pouch a consistent, premium appearance.
Standard equipment includes PLC control, servo-driven film pull (Panasonic / Delta / Yaskawa servo brands) with photoelectric tracking, adjustable sealing temperature, SUS304 stainless steel product-contact surfaces, and a compact single-phase 220V power supply. The machine is compatible with OPP/CPP, OPP/PE, PET/PE, and other heat-sealable composite films. Filling systems can be configured as volumetric cup, auger screw, or vibration feeder depending on the product type.
Max Speed
100 bags / min
Bag Width Range
25–140 mm
Power Consumption
1.5 kW
| Parameter | SW-1022 |
|---|---|
| Bag Length | 50–150 mm |
| Bag Width | 25–140 mm |
| Max Film Width | ≤220 mm |
| Packing Speed | Max 60–100 bags/min |
| Accuracy | Confirmed by sample test run, by product and dose |
| Bag Format | Triangle Bag (Pyramid Pouch) |
| Control System | PLC + Servo Motor + Touch Screen (Siemens / Mitsubishi / Delta / Weinview brands available) |
| Sealing System | Back seal + cross seals forming the triangle bag, adjustable temperature |
| Contact Material | SUS304 Stainless Steel |
| Film Material | OPP/CPP · OPP/PE · PET/PE · NYLON/PE |
| Power | 1.5 kW |
| Voltage | 220V 50/60 Hz (customizable) |
| Machine Weight | ~300 kg |
| Dimensions (L×W×H) | 1,260 × 930 × 1,700 mm |
Recommended Configurations by Product
Each scenario below shows a typical configuration by product. The SW-1022 handles a range of small-dose products. Contact us with your product type and target speed for a configuration recommendation.
Candy & Chocolate
5–20 g coated candy or chocolate balls
- Model
- SW-1022
- Filler
- Volumetric cup or vibration feeder
- Clients
- Confectionery brands, candy exporters, gift pack processors
Nuts & Seeds
10–30 g roasted nuts or mixed seeds
- Model
- SW-1022
- Filler
- Volumetric cup with adjustable volume
- Clients
- Nut processors, snack distributors, trail mix brands
Tea & Herbal Products
2–5 g loose leaf tea or herbal blend
- Model
- SW-1022
- Filler
- Volumetric cup with fine granule disc
- Clients
- Tea brands, herbal supplement companies, private label packers
Spice & Powder Sachets
3–10 g ground spice or seasoning powder
- Model
- SW-1022
- Filler
- Auger screw filler for fine powder
- Add-ons
- Date coder, dust collector, nitrogen flushing
The SW-1022 is designed for small-dose products in triangle bag format. For larger-volume back-seal sachets, see the SW-2030A back-seal granule machine or the SW-2030B back-seal powder machine. For four-side seal sachets, see the SW-1528 four-side seal machine.
Output Bag Type: Triangle Bag (Pyramid Pouch)
The SW-1022 produces a back-seal triangle bag that forms a pyramid shape when filled. Film wraps around the forming tube and is closed with a back seal and cross seals. The triangle bag stands on its base and showcases the product through transparent film panels.
Tetrahedron, Triangle or Pyramid Bag: What the SW-1022 Makes
Buyers use several names for a bag with triangular faces. The name matters less than the material and how the bag is used.
Common names for triangle-shaped bags, and which one this machine produces.
| Name | What it usually means | Material | SW-1022 |
|---|---|---|---|
| Triangle bag, tetrahedron bag, pyramid pouch | A sealed retail sachet with triangular faces, formed from rollstock film on a vertical form-fill-seal machine. Used for candy, chocolate balls, nuts, seeds, spice and loose tea. | Heat-sealable film: OPP/CPP, OPP/PE, PET/PE, NYLON/PE | Yes. This is the bag the SW-1022 forms, with a back seal and cross seals around a triangular forming tube. |
| Pyramid tea bag (infusion bag) | A pyramid-shaped bag that is steeped in water, usually with a string and tag, made on a dedicated tea bag machine. | Mesh or filter material | Not part of the SW-1022 specification. The SW-1022 packs tea into sealed film triangle bags, not into infusion material. |
Not Related to Triangle Package Machinery
A search for a triangle packing machine also brings up Triangle Package Machinery, a separate US packaging machinery company. In that name, Triangle is a brand. ShengWei Machine is an independent manufacturer in Guangdong, China, with no connection to that company. On this page, triangle describes the shape of the bag the SW-1022 makes.
Candy, nuts, tea, spice — triangle pouch format
3-Side Seal Pouch (For Comparison)
Back Seal Pouch (For Comparison)
Compatible film: OPP/CPP · OPP/PE · PET/PE · NYLON/PE. Send your film sample for sealing parameter confirmation before production.
Note: The triangle bag is a specialized format suited for small-dose, high-value products. For standard flat sachets, see the SW-1328 three-side seal machine or the SW-1528 four-side seal machine.
How the Triangle Bag Forming Cycle Works
The entire forming-filling-sealing cycle runs continuously. Each triangle bag is completed in under one second at full speed. The servo-driven film pull and photoelectric tracking system keep print registration precise across the entire production run.
01
Film Unwind & Tracking
Film unwinds from the roll mounted at the rear of the machine. A photoelectric sensor reads the print registration mark on the film and adjusts the pull length in real time, ensuring every bag is cut at the correct position. Film width capacity is up to 220 mm, supporting bag widths from 25 mm to 140 mm.
02
Triangular Tube Forming
The film passes over a forming shoulder and wraps around a triangular-section forming tube — the core component unique to the SW-1022. The tube shapes the film into a three-sided profile instead of the conventional round tube used in standard vertical machines. A longitudinal seal runs along one edge to close the film into a continuous tube.
03
Product Filling
Product drops through the forming tube by gravity. The filling system — volumetric cup for granules, auger screw for powder, or vibration feeder for irregular pieces — meters the correct dose for each bag. A hopper above the forming tube holds the bulk product and feeds the metering system continuously. Filling accuracy depends on the feeder type and product density.
04
Sealing & Cutting
Heated seal jaws close across the tube from three directions. A knife built into the jaw assembly cuts between bags to separate them. The filled triangle bag drops onto the discharge chute. Temperature, jaw pressure, and dwell time are all adjustable via the touch screen to suit different film types and product weights.
Gallery & Video
❮
❯
Close-up front view — forming tube, seal jaws, and film path
- Close-up front view — forming tube, seal jaws, and film path
- Machine with film roll loaded — film unwind and tension system
- SW-1022 with sample triangle bags — pyramid pouch output
- ShengWei Machine Factory workshop
Four Core Systems That Define the Triangle Bag
The SW-1022 is built around four purpose-designed systems that differentiate it from conventional back-seal or 3-side-seal vertical machines. Understanding these systems helps you evaluate whether the triangle bag format fits your product and production requirements. For larger-dose powder applications requiring auger filling in wider bags, the SW-420E/620E collar type auger powder machine offers bag widths up to 200 mm (SW-420E) or 300 mm (SW-620E).
① Triangular Forming Tube
The defining feature of the SW-1022. A precision-machined triangular-section forming tube replaces the round tube used in standard vertical machines. Film wraps around the three-sided profile, creating the pyramid bag geometry. The tube is removable for cleaning and available in multiple sizes to match different bag width requirements.
② PLC Touch Screen Control
A color touch screen displays packing speed, sealing temperature, bag length, and fault codes on a single screen. Product parameters can be saved and recalled for fast changeover between different SKUs. The PLC coordinates film pull, filling, and seal jaw timing in real time. Language and unit settings are configurable at the time of order — English, Spanish, Arabic, Russian, and other options available.
③ Interchangeable Filling Systems
The SW-1022 supports three filling methods depending on product type: volumetric measuring cups for free-flowing granules (candy, seeds, nuts), auger screw filler for fine powder (spice, coffee), and vibration feeder for irregular or sticky pieces. Switching between filling systems requires changing the dosing unit above the forming tube — the machine frame and control system remain the same.
④ Three-Direction Seal Jaw Assembly
Unlike conventional two-jaw cross-seal systems, the SW-1022 uses a three-direction seal jaw assembly that applies heat and pressure from three angles simultaneously. Seal temperature, dwell time, and jaw pressure are independently adjustable for each sealing direction via the touch screen panel. The jaw set is designed for quick replacement when worn.
Branded Components You Can Verify
Every critical component on the SW-1022 is sourced from established industrial brands. Part numbers are listed on the quotation sheet so you can verify pricing and availability independently before you order.

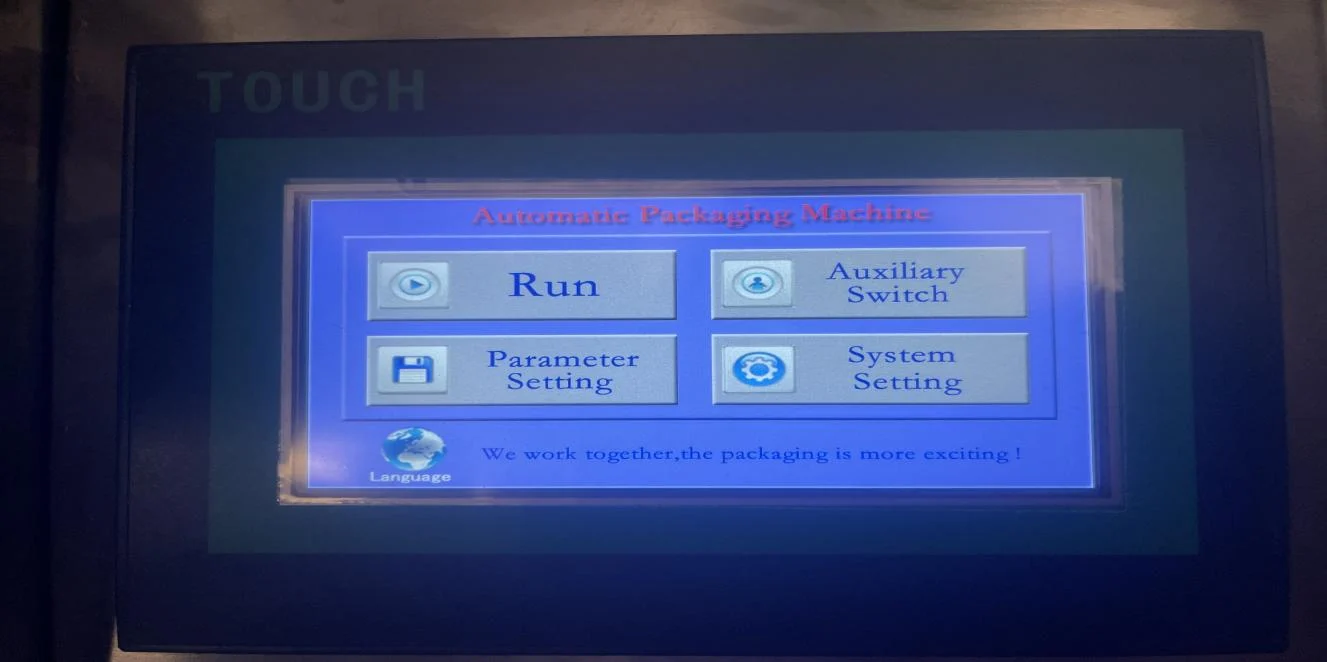

PLC Touch Screen Panel
Color touch screen displaying packing speed, sealing temperature, bag length, production count, and fault diagnostics. Supports multiple language options configurable at order time.

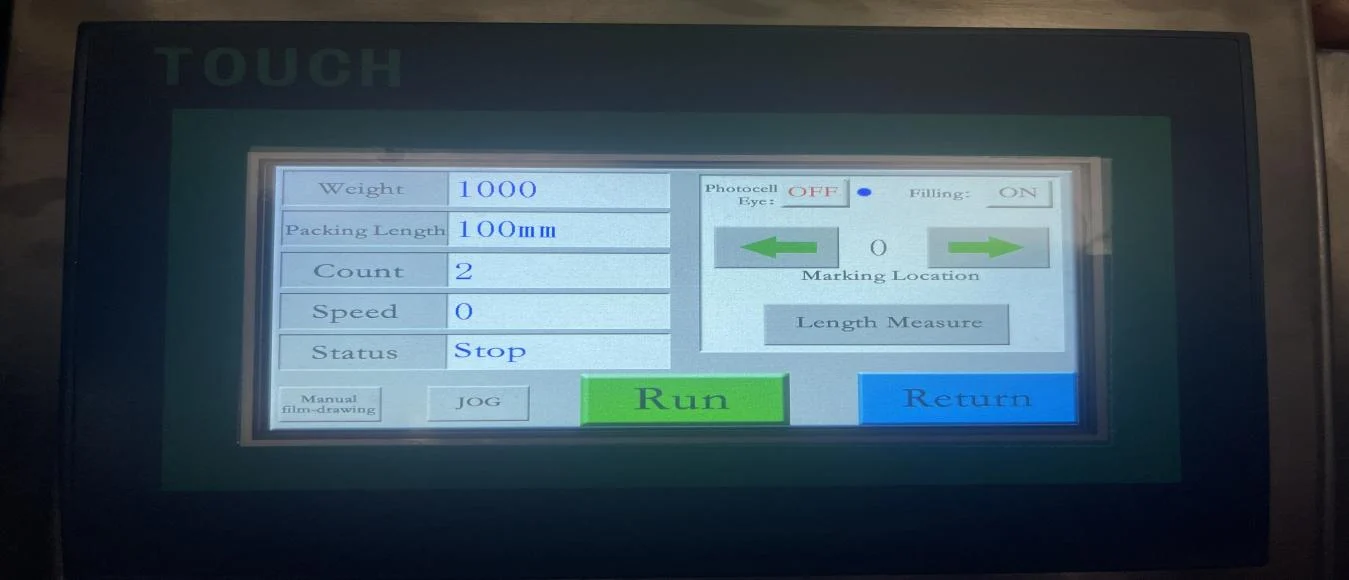

PLC Parameter Configuration
Detailed parameter screen for bag length, seal temperature, servo film pull distance, and filling time. Recipes can be saved and recalled for different product SKUs.
Temperature Controller
PID temperature control for all three seal jaw directions. Maintains set-point temperature to ensure consistent seal quality across OPP/CPP, PET/PE, and other film types.
Triangular Forming Tube
Precision-machined SUS304 stainless steel forming tube with triangular cross-section. Removable for cleaning and available in multiple sizes for different bag width requirements.
Auger Filler & Hopper
SUS304 stainless steel hopper with servo-controlled auger screw for precise powder dosing. Suitable for ground spice, coffee, and fine granules.
Schneider Easy9 Circuit Breaker
Overload and short-circuit protection for the main power circuit. Industry-standard Schneider breaker ensures reliable electrical safety across all voltage configurations.
Triangle Bag vs Standard Sachet — Which Format Do You Need?
Both formats start from rollstock film and produce sealed pouches on a vertical FFS machine. The key difference is bag geometry: the SW-1022 creates pyramid-shaped bags; standard machines create flat sachets. Choose based on your product type, target market, and retail display requirements.
Choose Triangle Bag (SW-1022) When:
- You need a distinctive, eye-catching bag shape for retail display or impulse sales
- Your product is small-dose (2–30 g) — candy, chocolate, nuts, tea, spice
- You want the bag itself to function as a mini display stand (the pyramid sits upright)
- Your market values novelty packaging as a differentiator (gift shops, specialty food, promotional items)
- Your production volume is moderate (a maximum of 60–100 bags/min) with compact floor space requirements
Choose Standard Vertical Machine When:
- You need a conventional flat sachet (back-seal, 3-side-seal, or 4-side-seal)
- Your dose weight exceeds 30 g or your bag width exceeds 140 mm
- You need multi-column output for high-volume sachet production
- Your packaging design requires a flat profile for carton boxing or display strips
When This Machine Is Not the Right Fit
The SW-1022 is designed for small-dose granule and powder products in triangle bag format only. For standard back-seal sachets, the SW-2030A back-seal granule machine or SW-2030D pendular small granule machine are better choices. For three-side-seal flat sachets, see the SW-1328 three-side-seal machine. For four-side-seal sachets (ketchup, shampoo), see the SW-1528 four-side-seal machine. For liquid filling, the SW-420F collar type liquid machine is the correct choice. For premade stand-up pouches, use the premade bag packing machine family.
Why Choose ShengWei Machine
Factory Direct from Guangdong
Designed and manufactured in our own 11,000 m² factory in Shantou, Guangdong. No trading companies, no middlemen — you work directly with the engineers who build your machine. Factory visits welcome by appointment.
Built-to-Order Configuration
Voltage (220V, 50/60 Hz), HMI language (English, Spanish, Arabic, Russian, Portuguese, and more), filling system type, forming tube size, and accessories are all configurable per order. OEM branding available for distributors and private label brands.
Lifetime Remote Support
Free remote video technical support for the life of the machine — not just the warranty period. Common spare parts typically ship from our factory within 3 working days. On-site installation and operator training available on request.
80+ Export Countries
ShengWei machines are exported to 80+ countries, including markets in Europe, Southeast Asia, Africa and the Middle East.
Tested Before Shipment — How We Prove the SW-1022
Two-Day Run Test on Your Film
Every SW-1022 goes through a structured Factory Acceptance Test before it ships: a test run across two working days, with speed, seal quality, weight accuracy, and rejection rate all logged. For a vertical form-fill-seal machine that means proving the forming tube and bag geometry on your film, checking seal consistency at your target bag size (50–150 mm bag lengths, 25–140 mm widths), verifying the triangle-bag forming geometry on your film, and holding stable output at your target speed (maximum 60–100 bags/min). Free sample test run on your own product and film — we send you the test video, usually within 2 working days of receiving your samples.
Approve Before We Crate
Before crating, our QC team sends you the FAT report, a test video of your machine running, and photos for approval. If your order requires it, we coordinate SGS, Bureau Veritas, or TÜV pre-shipment inspection and provide full access to the machine and test records. See how the 4-person QC team works at our Factory & Quality Center.
Frequently Asked Questions
What products can the SW-1022 pack?
What makes the triangle bag different from a standard sachet?
What filling systems are available for the SW-1022?
What is the actual packing speed and what affects it?
What film materials are compatible?
How do I change the bag size?
Can this machine pack liquids or paste?
What voltage and HMI language options are available?
What is the lead time and payment terms?
Can I send a product sample for a packing test?
Expert Guides
What Is a Vertical Form-Fill-Seal Machine?
How vertical FFS machines work, what bag formats they produce, and how they compare to premade bag systems and horizontal flow wrap machines.
Read Guide →Seal Strength vs Seal Integrity
Why a strong-looking seal can still leak, which seal-integrity test finds what, and how the four sealing methods compare.
Read the Sealing Guide →Premade Bags or Form-Fill-Seal?
Bag quality, changeover, film cost, and total cost of ownership — when VFFS wins, and when premade pouches do.
Read the Comparison →Other Snack & Candy Packaging Machines
Different bag formats and machine types for candy, nuts, and snack products.
Three-Side Seal Vertical Machine
Three-side seal vertical machine for granules and powder. Standard flat pouch format as alternative to triangle bags.
Pendular Small Granule Vertical Machine
Pendular small granule vertical machine. Handles candy, nuts, and snacks in back-seal bags.
Three Servo High-Speed Pillow Machine
Three servo high-speed pillow machine for candy. Pillow pouch format for high-speed candy and snack wrapping.
Ready to Discuss the SW-1022?
Send us your product type, target bag size, and daily output requirement. We will confirm the right filling system and return a quotation within one business day.
info@shengweimachine.com · +86 181 2511 2025
